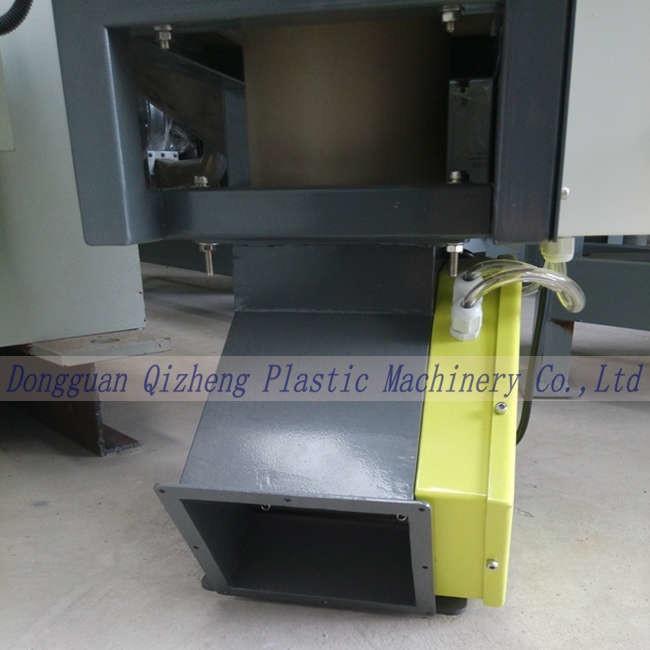

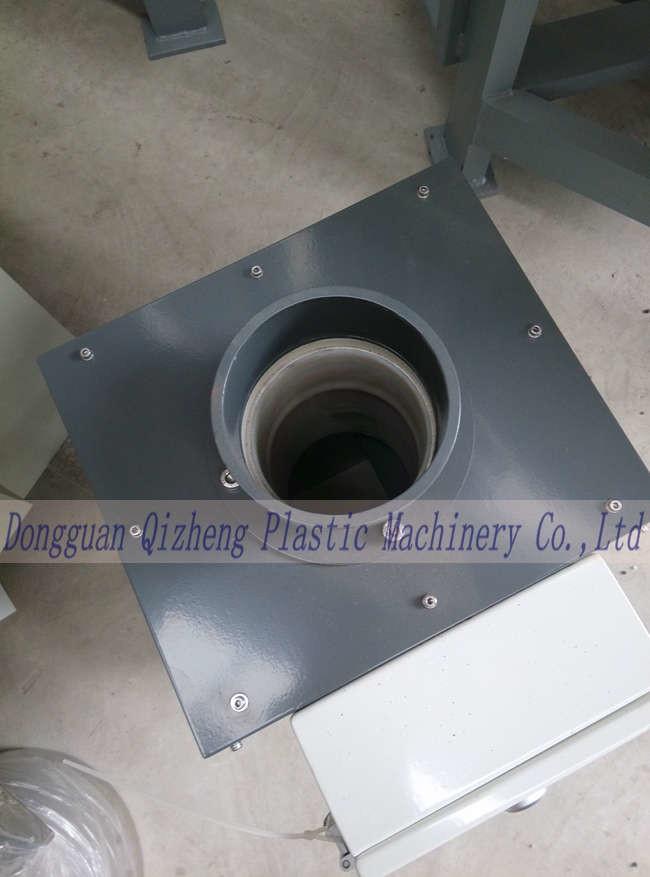

Metal Separator Or Metal Detector Machine For Food Plastic Packing Industry

Features:

All metals that can separate for example: Iron,Ferrous ,Cooper ,SUS ,Aluminum and so on . Mini metal can detect is 0.3mm diameter metal ball .

Meanwhile it can according to production need adjustment the sensitivity . Micro-computer control.LED indicate . High reaction . High accurate . The machine have a small volume space.

Easy operate. Easy installation .

It can install connect other equipment direct .Mostly used in food . Plastic .Packing and so on industry )

Control Inner parameter:

Control unit :Made from Germany Control PC :Germany MEITLE

The startup electromagnetic valveGermany FESTO

The actuating cylinder Japan SMC

Gas filter Jan pan SMC

Housing material :paint plate
work voltage :110v -220V Alternating current(+/-10%)(Have voltage switch ),50/60HZ
input current :80/160ma fuse :two 315ma
work environment :-10/60 degree waterproof standard :IP65

Input device :Test button, manual separation .reset. Pressure detection .

Output device :counter and metal detect

Machine parameter:

Compressed air:4-8KG ,6-8mm soft tube connect
Air consumption :0.4L of every separate action

Waterproof standard :IP54
Separate time :0.2-2.5 second ,0-10 grade can adjustment sensitivity

Equipment advantage:

Won’t jam for long fiber
Avoid disorder and caking Hygienic design.output side rustproof

Waterproof

Easy clean

Specifications Parameters of All Models:
