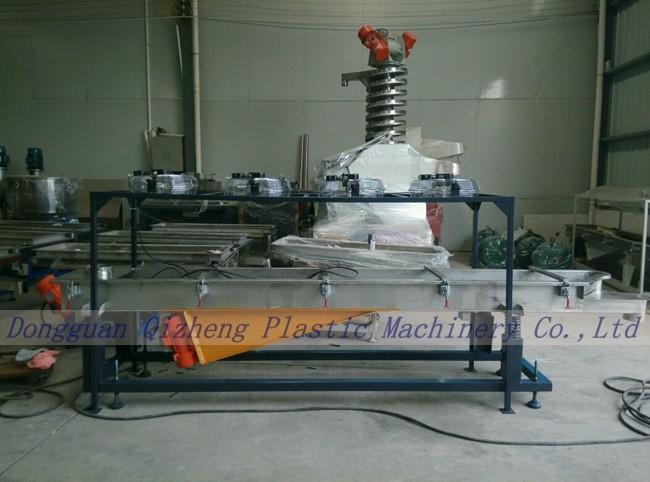

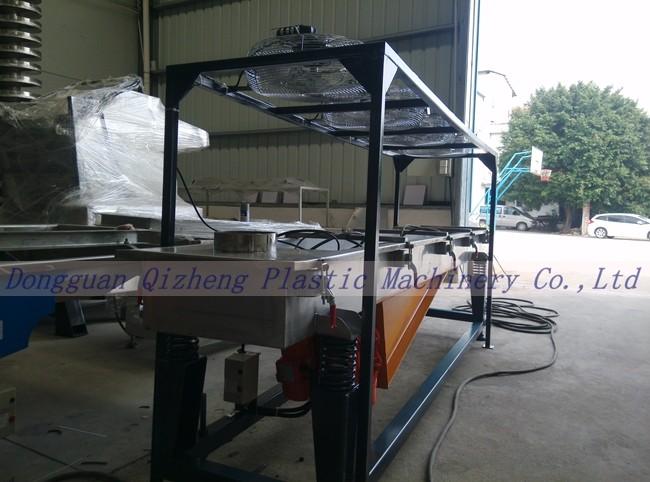

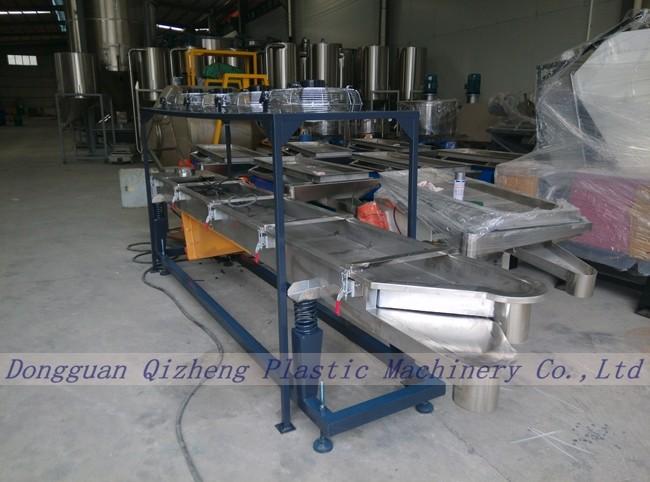

3.6M Linear Plastic Vibrating Screen Sieve Separator Machine With Fan Cooling

It is widely used in extruder field, to seperate the plastic granules size, due to the motor shaft installed weight.


Features:

1. the machine can be directly butt cutter, easy to install;

2. double stainless steel punching network, which can effectively be powder, strip, grade discharge;
3. fasten with fast delivery pipe installation simple and quick clean-up;
4. the use of plant vibration machine and the fan, low noise, large wind;
5. reversible storage tank, made of stainless steel, durable, easy to clean.

Working principle:

It is mainly consists of the eccentric block vibrator, screen box, motor, and supportive device. Through the flexible coupling, the motor drives the eccentric block of the vibrator at high rotary speed, generating the centrifugal force, and then lead the screen box to do circular movement by the amplitude. After that, the materials in the slope screen surface will be cast continuously by the force generated from the screen box, then realize the purposeof classifying.

 Specification Parameters:
