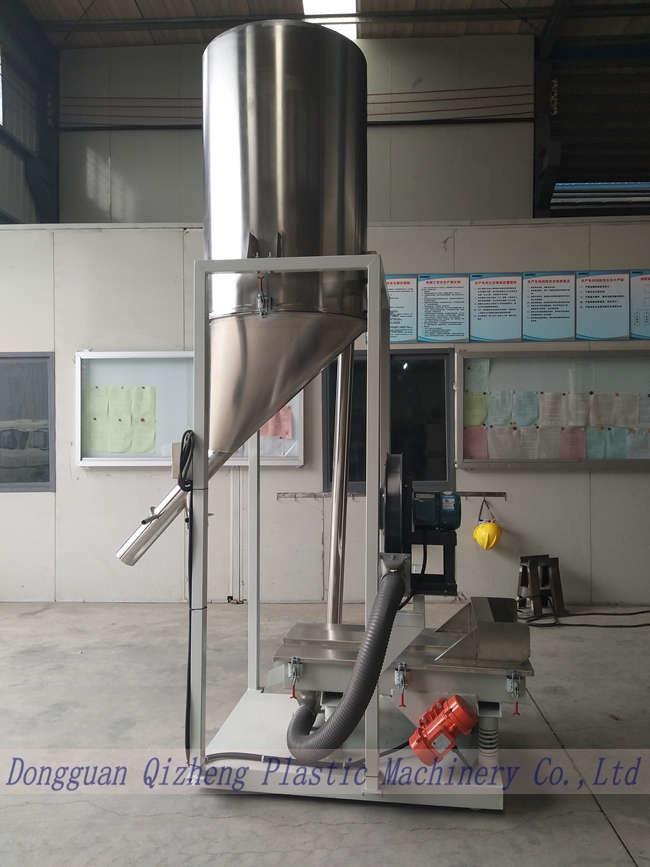

Granulated Material Vibrating Screening Sieving Machine Siever With Storage Silo

Description:

1. It is the most suitable machine used in the last process of feed factory: Screening out the qualified pellets from

    the final pellets or crushed pellets . Then the unqualified pellets and powder will be sift out.Then can be used

    again to make pellets.
2. Simple structure, easy operation, convenient maintain, low electicity consumption, low noise, good sealing, no

    pollution.
3. The vibrating type sifter is widely used to re-cleaning and sifing mateirial in feed, grain,chemicaletc, factory.

Working principle:

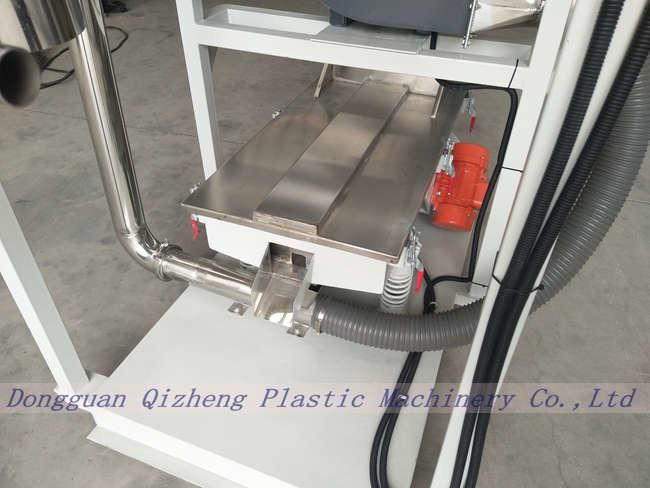

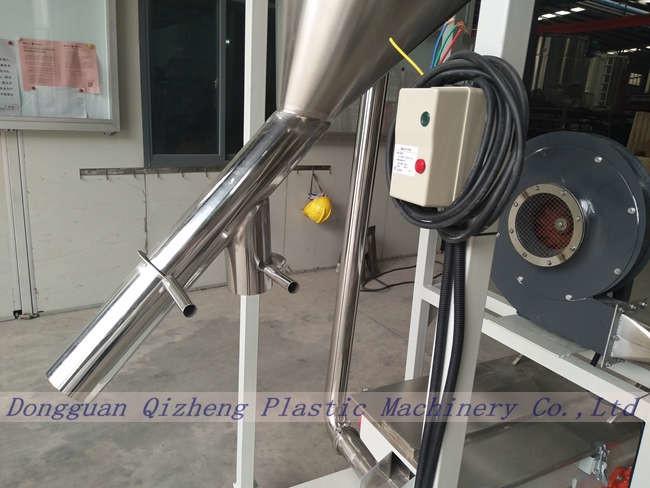

The vibrating screen is driven by two vibration motors. When the two vibration motors are performing reserve rotation synchronously, the exciting force generated by the eccentric block will compensate each other in the direction parallel to the axis motor and combine with each other as joint force. Therefore the movement curve of screen is liner one. There is one dip angle on the relative screen surface of the two motor axes. Under the impact of joint force by exciting force and self-gravity force, materials will be tossed up for forward leap liner movement so as to realize material screening and classification.The finally material will be storage in the silo by the blower at last.

Specifications Parameters:
