Diesel Engine Piston C56D 101mm F6M2012-C56D 1610102

Product Description:

Diesel Engine Piston is an essential machinery component of Otto cycle, which is part of the internal combustion system. It is produced with high-grade aluminum alloy and is designed to withstand compression pressure up to 20 MPa. Available in standard size, the Diesel Engine Piston has a silvery color and excellent starting performance. It is an essential component of any diesel engine and is widely used in many industries. With its reliable structure and superior performance, Diesel Engine Piston is the optimal choice for any machinery piston system.

Features:

• Primary OEM Part Number: 04501366 or 04258457.
• Alternate Reference Number: 1610102 (often found in aftermarket catalogs specifically for the C56D variant).
• Related Components:
  • Piston Pin Diameter: 38 mm.
  • Piston Length: Approximately 86.1 mm.
  • Ring Groove Dimensions: 2.5mm / 2.0mm / 3.0mm

Technical Parameters:

• Engine Series: Deutz 2012 Series (BFM2012 / TCD2012).
• Bore Diameter: 101 mm.
• Configuration: 6-cylinder, water-cooled, in-line diesel engine

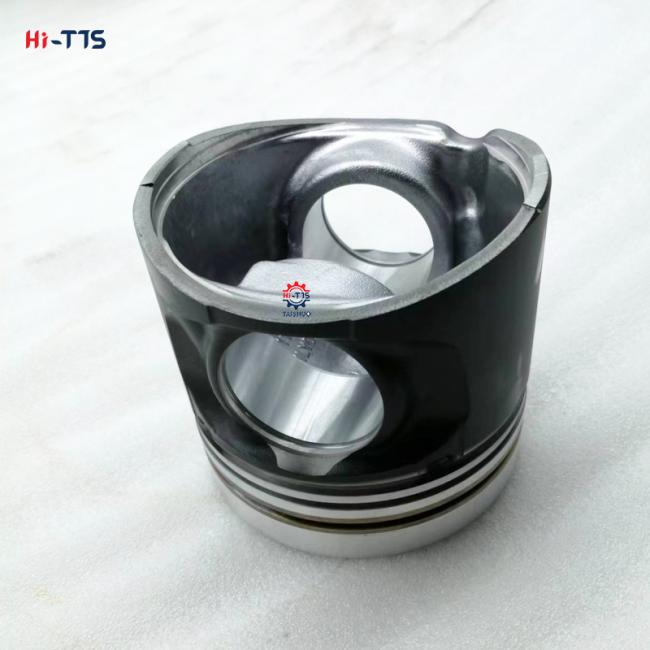

Photos:

Applications:

Piston C56D is a type of machinery piston system specifically designed for Otto cycle components. It is an ideal internal combustion piston for automotive replacement parts and diesel engine cylinders. The piston is made of high strength metal alloy that makes it suitable for power generator and marine diesel engine.

The product is certified with ISO9001 and comes with a silvery color with polishing surface treatment. It has an integral structure and standard size that makes it suitable for most machines. The compression pressure can reach up to 20MPa, ensuring superior performance and quality.

Customization:

We offer a Diesel Engine Piston customization service for Otto Cycle Component, Power Source Device, and Machinery Piston System. Our Diesel Engine Piston is of Brand Name: Piston, Model Number: C56D, Place of Origin: China, Certification: ISO9001, Application: Diesel Engine, Weight: 8.5kg, Size: Standard, Material: Aluminum Alloy, and Structure: Integral.

If you have any requirements for Diesel Engine Piston customization, please contact us and let us know more about your needs. We are here to provide you with the best service and highest quality products.

Support and Services:

Diesel Engine Piston technical support and service include:

• Provide installation instructions and user manuals for customers.
• Provide warranty services and product maintenance.
• Provide detailed technical support.
• Provide prompt after-sales service.
