1000mm Tensile Strength Testing Equipment With Single Pole / Panasonic Servo Motor
1000mm Tensile Strength Testing Equipment With Single Pole / Panasonic Servo Motor
Description:

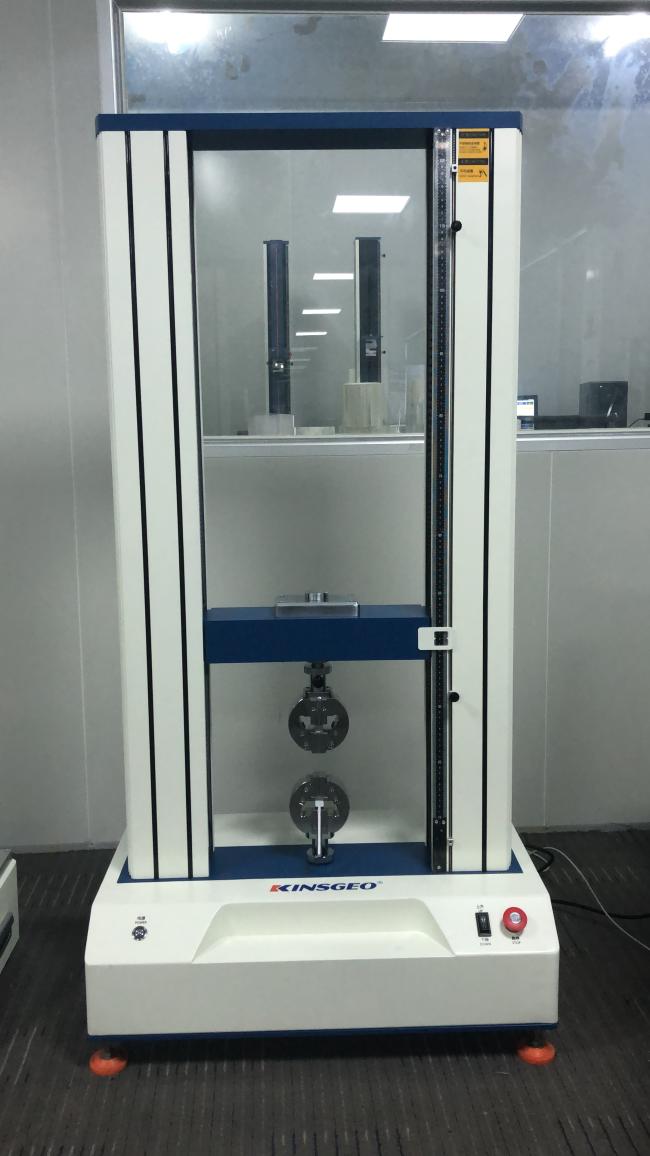

This Universal Tensile Test Machine can do tensile test, tear test, peel test, bond test with different clamps for plastic ,rubber,leather,textile,tape,film and other kind of materials.
This universal test equipment uses the motor to drive screw to move fixtures. Fix sample between upper and lower fixture and pull sample by the upper fixture upward with specified speed. The load cell connecting with upper fixture will sense the force and then convert it into voltage sign to the display screen. Force value will be displayed automatically on the PC screen.
Applications:
-
Deformation under defined load: Test deformation under defined load of tested sample
-
Load under defined deformation: Test load under defined deformation of tested sample
-
Software can issue report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.
-
This universal test machine can do different test as per customer requirement such as peel test, tear test, compression test, bend test,elongation test,tensile strength with different clamps.
Design Standard(inculding but not limited to... ):
-
Tensile Test: ASTM D882 ASTM D 638 / ISO 527-1/2
-
Bend Test ISO-178 / ASTM D 790
-
Tear Test:ASTM D 624
-
Peel Test : ASTM D 3330
-
Compression Test : ASTM D 659
-
others...
Specification:
The parameters for the company Standard Model parameters, we support customer customization parameters
| Item | Description |
| Max. Force | 2000 kg (20KN) |
| Load cell | Germany brand load cell for high accuracy |
| Control system | PC with windows 7 system |
| Motor | Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod |
| Force reading | kgf, Ibf, N, KN, T etc |
| Stoke | 1200mm including fixture |
| Load cell Resolution | 1/250,000 |
| Load Precision | ≤0.5% |
| Test speed | 0.5~500mm/min (adjustable by PC) |
| Test width | ≤400mm |
| Software | TM 2101 |
| Curves display | Load- elongation, Elongation-time, Time-elongation, Stress-strain |
| Data display | Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc… |
| Safety features |
E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
The parameters for the company Standard Model parameters, we support customer customization parameters
Software Functions:
1. Use windows working platform, set all parameter with dialog forms and operate easy;
2. Using a single screen operation, do not need to change the screen;
3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast ways;
6. With many units of measurement, the metric system and british system can switch;
7. Have automatic calibration function;
8. Have user-defined test method function
9. Have test data arithmetic analysis function
11. Have the function of automatic magnification, to achieve the most appropriate size of graphics;
12. Can test tensile, compression, peel, fatigue and so on.
