Double Obstruction Aircraft Warning Light Low Intensity L810 Aviation
Price:
Negotiable
MOQ:
1
Delivery Time:
7-15 work days
Brand:
ANNHUNG
Product Description

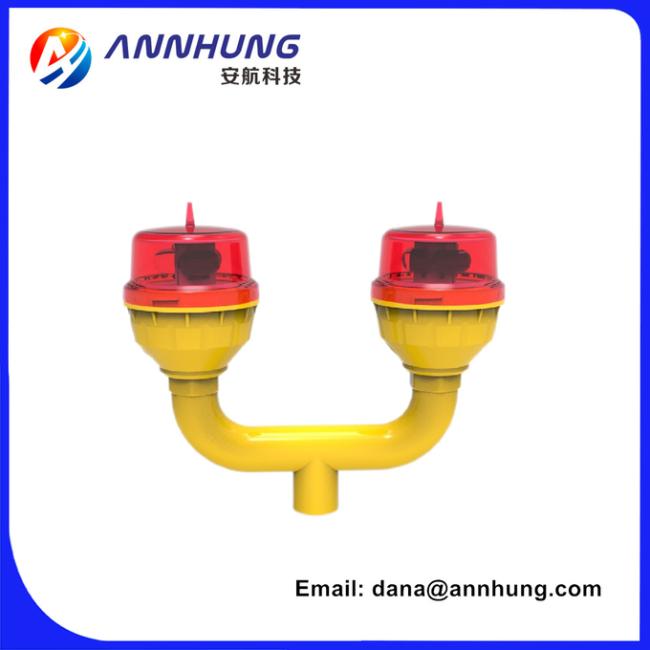

AH-LI-B2 LED Low-intensity L810 Double Aviation Obstruction Light
Application
AH-LI-B2 low-intensity light could be used alone on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the height is lower than 45m.
Main-standby mode ensure the obstacle is always marked even one light fail.
Compliance
ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Low Intensity Type A / B /E Obstruction Light
FAA L-810
Electrical
CREE LED, make sure LED keep bright while use for long time
Power supply in DC(48V)& AC(110-240VAC), the light could work normally when input 48VDC/110VAC/240VAC
Physical
Bird deterrent spike on top
Unique designed PMMA lens for converging light and good transparency
High translucency and anti-UV polycarbonate cover could use 3-5years without yellowing
3/4inch thread hole make pole installation easy
System design
Built-in photocell for day/night operation(dusk to dawn operation, automatically turn on when background luminance is below 50cd/m2
Steady/20FPM/30FPM/60FPM DIP switches on PCB
Main-standby mode, when the main light fail, the standby light automatically switch on to ensure the obstacle is always clearly marked.
Optional
Alarm contact output (Dry contact- NO COM NC), When power failed alarm generate & also when LED fails alarm generated
Solar power system
| Description | Parameter |
| Light Source | LED |
| Flash Characteristics |
Steady-burning/20/30/60 adjustable
|
| Operation Mode |
Dusk-to-dawn Automatically as standard.
|
| LED Life Experience(hours) | >100,000 |
| Instantaneous power(W) | 110-240VAC, 48VDC, or others |
| Power(W) | 5 |
| Mounting |
3/4 inch pipe thread
|
| Dimension(mm) |
254×90×210
|
| Weight(kg) | 1.5 |
| Ambient Temperature(℃) | -55~70 |
| Humidity | 10%-95%RH(No condensation) |
| Wind Speed | 240Km/h |
| Waterproof | IP66 |
| Options Available |
GPS sync flashing
|
Led double obstruction light
Led red obstruction light
Building aviation warning light
Twin aviation obstruction light
