Blutooth Control LED Marine Lantern With Thermal Stability And High Transmittance
LED Marine Navigation Lanterns Blutooth Control IALA 256 Flashes
Advantages
1. Visible distance 6 to 10 Nautical Miles (Tc=0.74)
2. PC material keep from impacting, thermal stability, high transmittance.
3. Bird spike against bird nesting.
4. Major Maintenance Cost Saving,overload protection device inside light.
5. Strong anticorrosion, anti seismic protection and UV protection.
6. Dawn to Dusk operating:Built-in photocell can let light work automatically at night,closed during the day.
7. IP67 protection standard, Full sealing structure.
Scope of Application
AH-LS/P-2 LED Marine Lanterns is commonly used on both fixed and floating structures for Aids to Navigation,Buoy,Port,Ship mast,etc.
After-sales service
1. 2 years full warranty, 5 years maintenance since the purchasing date.
2.Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
3.Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
Product Descripton
| SPECIFICATIONS | AH-LS/P-2 LED Marine Navigation Lanterns |
| Light Characteristics | |
| Light Source | LED |
| Available Colors | Red, Green, Yellow, White, Blue |
| Visible Range(NM) | 6-10 (AT@0.74) |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | 10 |
| Flash Characteristics | Adjustable Steady/Flash mode(others optional) |
| Operation Mode | Dusk-to-dawn Automatically (Built-in photocell) |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | 110-240VAC, 12VDC, 48VDC or others |
| Circuit Protection | Integrated |
| Physical Characteristics | |
| Body Material | UV protected Polycarbonate |
| Base Material | Powder-coated Die-casting aluminum |
| Mounting(mm) |
190×190×Φ12
|
| Dimension(mm) | 220×220×233 |
| Weight(kg) | 2.5 |
| Product Life Expectancy | Average 5 years |
| Environmental Factors | |
| Humidity | 0~100% |
| Wind Speed | 80m/s |
| Waterproof | IP68 |
| Compliance | |
| IALA | Signal colors compliance to IALA E-200-1 |
| Options Available | |
| Wireless Remote Control | |
| GSM Monitoring | |
| GPS sync flashing | |
|
RS232 485 port |
|
| Charging port | |
| IALA 256 Light characters adjustable | |
| Solar panel & battery |
Packaging & Delivery
Packaging: Paper carton 1-9 piece/box.
Delivery: In 2-10 days after payment.
Dimension Drawing

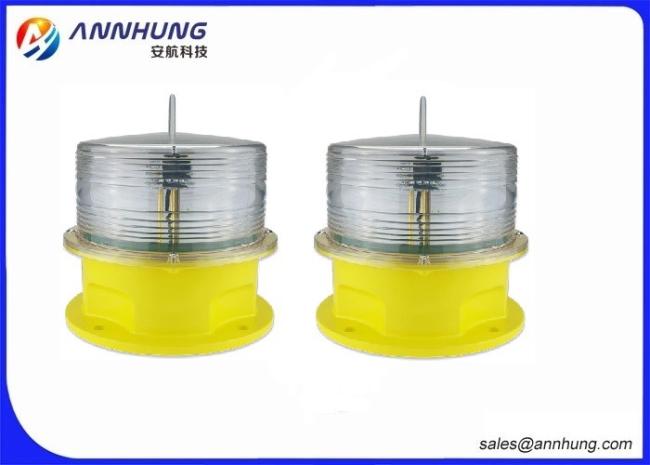

Product Picture
