4-6nm Visible Range Solar Marine Lantern Remote Control With Four Adjustable Angles
Marine Lanterns is completely self-contained lantern. Four (4) solar panels are integrated into the assembly and mounted to collect sunlight at all angles. CREE Ultra high intensity LED is used as light source which make performance better. There is two rotatory switch on PCB, user could change the light flashing characteristics(IALA 256 flashes) easily. GSM Monitoring as optional function, when fault happens, it will send out text message automatically.
Compliance: IALA E-200-1
** Based on LED technology, and its color complies to IALA Recommendations E-200-1.
** LED technology reduces maintenance time & costs
Physical
PC housing, UV resistance, shockproof and corrosion proof.
Bird deterrent spike
Powder coated die casting aluminum base
4-side mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon
4-side solar panel vertical angle adjustable
ON/OFF button interface
System design
Solar panel as photocell for day/night operation(dusk to dawn)
Equipped with rotary switches for adjust 256 kinds of flashing rate comply with IALA
Optional
► User-adjustable operation mode to toggle between dusk-till-dawn & 24hr operation
► External charger
► Wireless remote control
► GSM Monitoring
► RS232 485 port
► GPS Sync flashing
Application
AH-LS-4C Solar Marine Lantern is used on buoy, light house and any other off shore site for marine/river safe navigation.
Product detailed parameter:
| Light Source | LED |
| Available Colors | Red, Green, Yellow, White, Blue |
| Visible Range(NM) | 4-6nm (AT@0.74) |
| Flash Characteristics | Adjustable 256 IALA light characteristics |
| Operation Mode | Dusk-to-dawn Automatically (Built-in photocell) |
| Solar Module Type | Mono crystalline Silicon |
| Charging Regulation | Microprocessor controlled |
| Battery type | Valve-Regulated Lead Acid Battery |
| Battery Capacity (Ah) | Depends on different visible range |
| Dimension(mm) | 220*220*470 |
| Weight(kg) | 10 |
| Humidity | 0~100% |
| Wind Speed | 80m/s |
| Waterproof | IP68 |
| IALA | Signal colors compliant to IALA E-200-1 |

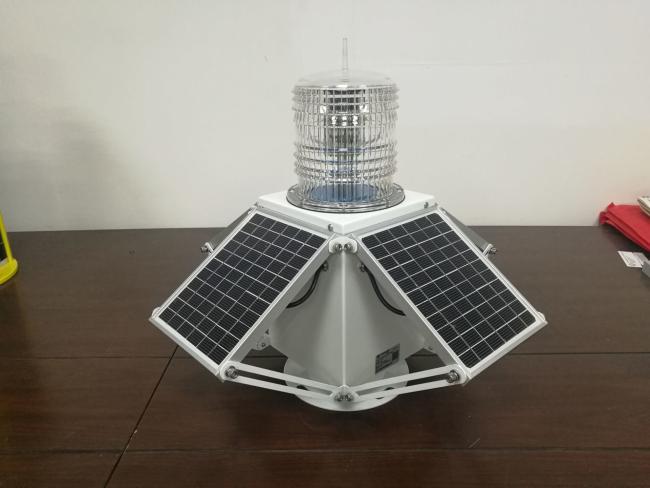

Product image:
