Adjustable Gate Valve Lock , Msha Chemical Resistance Industrial Valve Lock
Chemical Resistance Msha Approved Industrial Adjustable Gate Valve Lock Out
Feature:

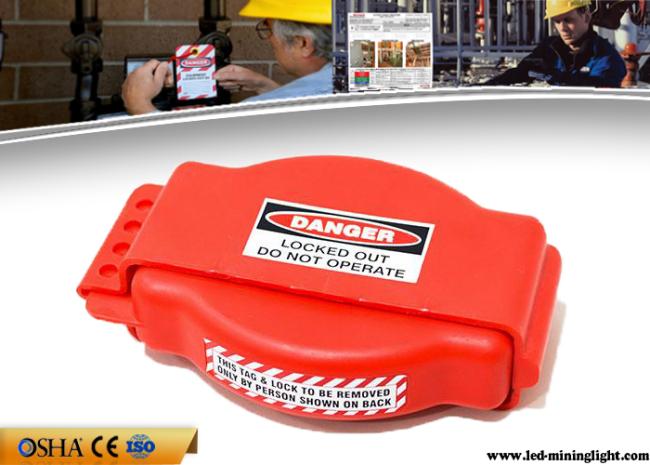

ZC-F16 Adjustable gate valve lockout
1. Made from polypropylene PP.
2. Lock range can be adjusted. Lock the hand wheel diameter 25mm-165mm(1"-6.5") valve.
3. Locked by one padlock, locked shackle diameter<=7mm.
4. Color: red, other colors need to be customized. Tagout is available.
Specification:
| Part Code | Description |
| ZC-F16 | Valve rod diameter 25mm-165mm(1"-6.5") |
The Safety Valve lockout we can Supply:
1. adjustable ball valve lockout
2. standard ball valve lockout
3. standard gate valve lockout
4. new standard gate valve lockout
5. adjustable gate valve lockout
6. butterfly valve lockout
7. universal valve lockout
8. plug valve lockout
| Description | Model No. | Remark | size(mm) |
| adjustable ball valve lockout | ZC-F01 | suitable for DN8-DN50 Ball Valve | 137*111*80mm |
| ZC-F02 | suitable for DN50-DN200 Ball Valve | 305*220*110mm | |
| standard ball valve lockout | ZC-F03 | suitable for DN8-DN50 Ball Valve | 145*50*12mm |
| ZC-F04 | suitable for DN50-DN200 Ball Valve | 255*80*20mm | |
| adjustable ball valve lockout | ZC-F05 | suitable for DN8-DN50 Ball Valve | 220*30*140mm |
| ZC-F05A | suitable for DN8-DN50 Ball Valve,with auxiliary parts | 220*30*140mm | |
| ZC-F06 | suitable for DN50-DN70 Ball Valve | 310*200*40mm | |
| ZC-F06A | suitable for DN50-DN70 Ball Valve,with auxiliary parts | 310*200*40mm | |
| ZC-F07 | suitable for DN70-DN200 Ball Valve | ||
| adjustable ball valve lockout | ZC-F08 | suitable for DN8-DN125 Ball Valve | |
| standard gate valve lockout | ZC-F11 | suitable for 25mm-64mm valve rod | can be made from ABS and import dupont engineering plastic |
| ZC-F12 | suitable for 64mm-127mm valve rod | ||
| ZC-F13 | suitable for 127mm-165mm valve rod | ||
| ZC-F14 | suitable for165mm-254mm valve rod | ||
| ZC-F15 | suitable for 254mm-330mm valve rod | ||
| standard gate valve lockout | ZC-F16 | suitable for 25mm-165mm valve rod | |
| butterfly valve lockout | ZC-F21 | suitable for 8mm-455mm valve rod | |
| universal valve lockout | ZC-F31 | single arm to lock out quarter-turn ball valves | |
| ZC-F32 | two arms to lock out 3,4 or 5-way valves | ||
| ZC-F33 | with cable attached to lock out valves | ||
| ZC-F34 | fix the clamp on the hand shark to avoid the trigger from closing | ||
| ZC-F35 | universal use far all types of valves | ||
| plug valve lockout | ZC-F41 | suitable for valve diameter under 22mm | |
| ZC-F42 | suitable for valve diameter from23 to 34.9mm | ||
| ZC-F43 | suitable for valve diameter from44 to 53.9mm | ||
| ZC-F44 | suitable for valve diameter from55 to 63.5mm |
Product Picture:
