Warm White IP68 7.8Ah 1.67w LED Tunnel Light
18000Lux Strong Brightness Safety Waterproof Headlamp , Coal Mining Lights
Features:
1. 12000-15000lux 7.8Ah Li-ion battery
2. 1pcs 3W Cree led with 2pcs SMD
3. similar to NEW WISDOM KL8LM cord cap lamp
Specification:
GL8-D 18000lux Brightness safety Led Mining Cap Lamp explosive-proof water-proof
cord miner cap lamp is used 1W high power white led as main light, 6pcs SMD leds as the backup lights,and designed with high property 7.8Ah rechargeable Li-ion battery.
This cap lamp has strong brightness,long lighting time,long life time,high intensity,light weight,low usage cost,and high safety.
It can be used in Mine, underground working, Patrolling, Overhauling and Emergency in electrical power company,Military, Police, Fire Fighting, Dockyard and other hazardous locations ect.
Technical Specification:
| GL8-D | |||||||
| Name | Unit | Value | |||||
| Light source | LED power | W | 1.05 | ||||
| Illumimous flux | Lm | ≥146 | |||||
| Lighting degree | Lux | ≥18000(for 1 meter) | |||||
| Lifetime | Hour | ≥100,000 | |||||
| Battery | Capacity | Ah | 7.8 | ||||
| Voltage | V | 3.7 | |||||
| Charging time | Hour | ≤8 | |||||
| Lifetime | Cycle | ≥1200 | |||||
| Charger | Input voltage | V | AC110-240 | ||||
| Output voltage | V | DC4.2 | |||||
| Output current | A | 1 | |||||
| Continuous lighting time | Hour | ≥18 | |||||
| Lighting range | M | ≥50 | |||||
| Working temperature | ºC | -60 | |||||
| Max surface temperature | ºC | 40 | |||||
| Outline dimension | MM | 77*93*41 | |||||
| Weight(single lamp) | G | 490 | |||||
| Type of protection | CE,ATEX,EXIB II | ||||||
| Protection category | IP68 | ||||||
Details:
1. Yellow/green bezel for your options. (Yellow color is more popular).
2. USB cable + Traditional Cradle Charger
3. High Low Beam : Main Light (10000Lux) + Auxiliary Light (back up light for emergency).
4. Low Power Warning Function for your options(this fuction can remind you to charge,
when lower voltage, the main light turns automatically to auxiliary light)
5. SOS mode will be opened. 3 quick flashes and 3 slow flashes - telling others that there are people here who need help.

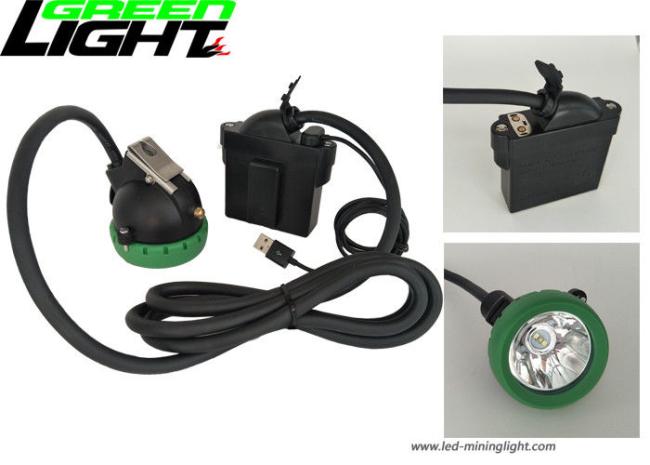

Product image
Characters:
1) High power LED light source, extra long lifetime (50000 hours)
2) Li-ion battery, compact and light weight, free of maintenance
3) Intelligent charging protection: anti-overcharging, current control, short circuit protection and anti-overheating
4) With ourGL5L2M special charger,input AC90-240V,50-60HZ,output:4.2V 1000m A
5) Water proof, current shock proof, moisture proof and impact proof
Application
It can be used in Patrolling, Overhauling and Emergency in electrical power company,Mine , Military, Police, Fire Fighting, Dockyard and other hazardous locations ect.
