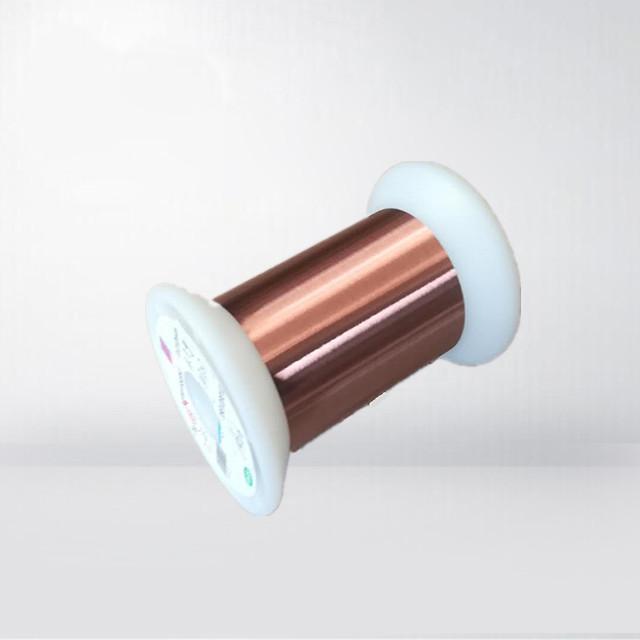

0.025mm Ultra Fine Self Bonding Wire Silver Plated Copper Wire
0.025MM ULTRA FINE SELF BONDING WIRE SILVER PLATED COPPER WIRE
A special type of enamelled wire is self bonding wire. Self bonding wire is an enamelled wire with an additional adhesive enamel overcoat. This adhesive has a bonding feature, which is activated by heat or solvents. Once activated the adhesive bonds turn to turn windings into a compact self supporting coil. The use of self bonding wire may offer cost and manufacturing advantages in some winding applications as bobbins, tape, varnishing, or impregnation may be eliminated.Self bonding wire can be supplied with different conductor materials such as self bonding copper clad aluminum wire, self bonding aluminum wire etc.
CERTIFICATES: ISO 9001-2000, ISO TS 16949, ISO 14001-2004, UL Approved, RoHS Directive Met
EXECUTIVE STANDARDS: IEC, JIS and NEMA.
APPLICATIONS:
High frequency coils, transformers, touch sreen, relays, small motors, Sensors etc
SPECIFICATION
| Self-bonding Enameled Wire | |||||
| Description | Designation | Thermal Grade(℃) | Diameter(mm) | Feature | Application |
| Solvent Bonding Polyurethane Enameled Wire (Conductor: copper, copper-clad aluminum) |
Y1 Y2 Y3 |
130~180 | 0.01~0.5 | Directly solderable Excellent bonding strength Suitable for different bonding strength requiements applications Easily dyable,various coloring options:Natural,Red,Green,Blue, Black |
Speaker coil(i.e.: microphone, earphone,speaker,hearing aid),micro vibration motor (i.e.: focus-driving,coin-type, coreless-type)and other electrical and electronics components(i.e.: inductor, watch coil,coin machine coil, buzzer),magnetic head,IC card. |
| Heat Bonding Polyurethane Enameled Wire (Conductor: copper, copper-clad aluminum) |
H H1 H2 |
130~180 | 0.01~0.5 | ||
