PE Underground Plastic Water Gas Supply Pipe Making Machine

APPLICATION:

This PE water gas supply pipe production line features advanced fully automated design, suitable for manufacturing PE80 and PE100 pipes with diameters ranging from 20mm to 2000mm. It is widely used in municipal water supply, agricultural irrigation, and other fields. The production line is equipped with a high-efficiency extruder, precision molds, a water cooling system, a high-speed traction machine, and an intelligent cutting machine, ensuring precise dimensions and smooth surfaces of the pipes. The PLC control system enables fully automated operation and includes online detection functions to guarantee stable product quality. With high production capacity, low energy consumption, and user-friendly operation, the production line complies with environmental standards, making it an ideal choice for producing high-quality PE water supply pipes.

PE PIPE PRODUCTION SPECIFICATIONS:

Technological processes

[Feeding&Drying] → [Extrusion Molding] → [Mold Shaping] → [Cooling] → [Traction and Cutting] → [Marking]

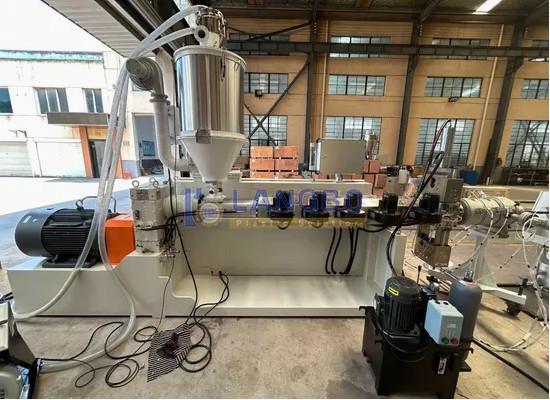

Single Screw Extruder Machine

Using the high efficient single screws, specially designed for PP,PE granule material to ensure uniformed plasticization, high extrusion. Stable temperature controlling system can guarantee high quality pipe extrusion.

pipe extrusion Mould:
Spiral type die head will ensure high speed extrusion and avoid the thermal decomposition of amorphous plastics and get high quality pipes. There is heating control system inside of the mould, high efficient, easy to extrude. Bronze calibrators can make the pipes fast calibrated and cooled.

Vacuum cooling tank and spraying cooling tanks:
Rapid vacuum calibrating system allows the hot extruded pipes to be cooled in a very short time and obtain the final pipe diameter. Automatic temperature control system, pressure regulator, and vacuum control valve greatly enhance the pipe sizing and cooling performance as well as the production speed.

Haul off machine:
Adopts crawler track type, which includes two-claw types, three-claw types, four-claw types, six-claw types, eight -claw types, ten-claw types, twelve-claw types etc, suitable for different sizes of pipes. Haul off crawler track blocks are made of abrasion resistant rubber material, which can make a high and stable hauling speed.

Cutting machine:
Precision machine cutter is able to make flat, straight cuts into pipes at high speed. A powerful suction device gathers up waste scraps after cutting, thereby making it easier for users to clean the cutter.

Pipe stacker or pipe coiler
Automatic pipe stacker for packing the pipes, pipe coiler for small PE pipes like 16-40, 16-75mm, 50-110mm.

Advantages:

Adopt advanced technology
-Stable operation
-High degree of automation, saving labor costs
-Good quality, meets international standard
-Supply full completed production solution: design, installation, commissioning,training
-Share you 389 sets of production experience from all the world
-Having 9 professional senior engineers
-Having a high-end plastic machinery equipment expert workstation in China


PRE- AND AFTER-SALE SERVICES

• A great wealth of experience,

• A consistent focus on the highest quality

• A complete twin pipe vacuum sizing system;

• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;

• Optional length set and accurate adaption stacker.

• A highly motivated team

• Sophisticated process technology

• Customized solutions
