Waterproof Wpc Decking Extrusion Line Saw Cutter Outdoor
High quality waterproof outdoor wpc decking

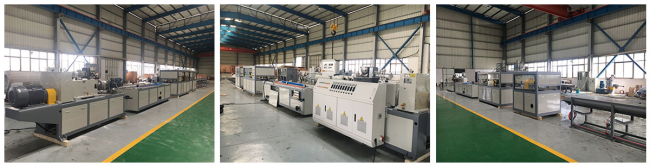

WPC PROFILE EXTRUSION LINE
The long-standing experience in plastic processing allows LANGBO MACHINERY to ensure high performance and great reliability over time.
LANGBO MACHINERY single-screw and twin-screw profile extrusion line allow producing rigid and flexible profiles with different weights and dimensions from a few grams to several kilogrammes/metre, from a few millimetres to more than one metre width.
FEATURES:
To complete our profile production lines, you can find a wide range of LANGBO MACHINERY modular accessories:
heads with machine control and fully thermoregulated, both inside and outside.
calibration and cooling benches
take off modules provided with local and remote PLC control
vertical cutter: suitable for profiles up to 300 mm
horizontal cutter: designed for production of wide flat profiles
SPECIFICATION:
The Table provides a general information for standard Product.
For Further customized technical assignment please contact us.
| Model | SJZ45 | SJZ51 | SJZ65 | SJZ80 | SJZ92 |
| Screw diameter (mm) | 45/100 | 51/105 | 65/132 | 80/156 | 92/188 |
| Screw rotation speed (r/min) | 4-45.5 | 1-30 | 1-34.7 | 1-36.9 | 1-32.9 |
| The effective length of the screw (mm) | 1000 | 1050 | 1430 | 1800 | 2520 |
| Main motor power (kW) | 15 | 22 | 37 | 55 | 90 |
| Barrel heating power (kW) | 12 | 18 | 24 | 36 | 48 |
| Capacity (kg/h) | 95 | 110 | 250 | 380 | 520 |
| Central height (mm) | 1000 | ||||
| Net Weight(kg) | 3000 | 3200 | 5000 | 6500 | 7500 |
