UL20855 PP Insulation FRPE Jacket 5C×26AWG+A 80℃ 30V Tinned copper stranded Cable
Price:
Negotiable
MOQ:
1000
Delivery Time:
4 Weeks
Brand:
HWATEK
Product Description
UL20855 PP Insulation FRPE Jacket 5C×26AWG+A 80℃ 30V Tinned copper stranded Cable
Product Specifications
| Conductor | Tinned copper stranded | |||
| Cross section | 5C×26AWG | |||
| Construction | 7/0.16mm | |||
| Strand Dia.(Ref) | 0.48mm | |||
| Insulation | PP | |||
| Nom.Thickness | 0.20mm | |||
| Min.Thickness | 0.18mm | |||
| Insulation Dia. | 1.00±0.08mm | |||
| Insulation colour | 1.red, 2.black 3.blue 4.green 5.white | |||
| Material | Al-mylar,face out,≥25% | |||
| Cabling | 5C×26AWG+A | |||
| Jacket | FRPE | |||
| Nom.Thickness | 0.76mm | |||
| Min.Thickness | 0.61mm | |||
| Outer Dia. | 4.50±0.15mm | |||
| Colour | Yellow pantone 101C | |||
Products are used in industrial control system, household appliances, office system, and consumer electronics.
Key Features
- Application: Internal wiring or external interconnection of electronic equipment
- Application standard: UL758 & UL1581 & CSA C22.2 No.210
- Excellent insulation performance, stable chemical properties
- Pass UL VW-1 and CSA FT1 vertical flame test
- Heat resistance, anti-acid and environmental protection
Construction
- Tinned or bare copper, stranded or single conductor, 30-4/0AWG
- PVC insulation
- Two or more single-core wire are twisted
- Tinned or bare copper wire, spiral or braid shield or Al-mylar wrapped shield
- PVC jacket UV resistant
Technical Parameters
- Rated temperature: 80ºC
- Rated Voltage:30 V
Product Specifications Table
| Electric Performance | ||||||
| Rated Temperature | 80℃ | |||||
| Voltage rating | 30V | |||||
| Max.conductor DC resistance(20℃) | 150Ω/km | |||||
| Dielectric Strength AC | 0.5 KV/min | |||||
| Mechanical Performance | ||||||
| Jacket | ||||||
| Material | FRPE | |||||
| Tensile strength | ≥8.27MPa | |||||
| Elongation | ≥100% | |||||
| Aged condition | 113±1℃×168h | |||||
| Percent of original tensile strength | ≥75% | |||||
| Percent of original elongation | ≥75% | |||||
Company Profile

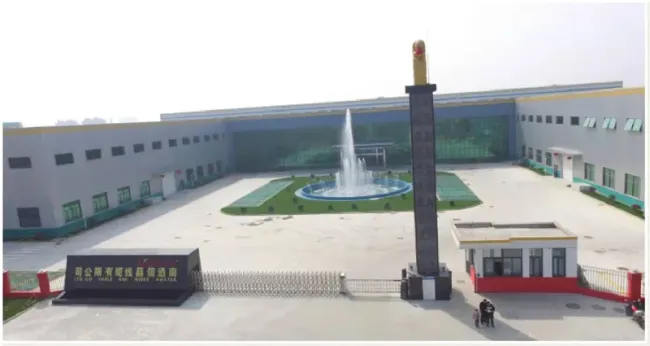

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
