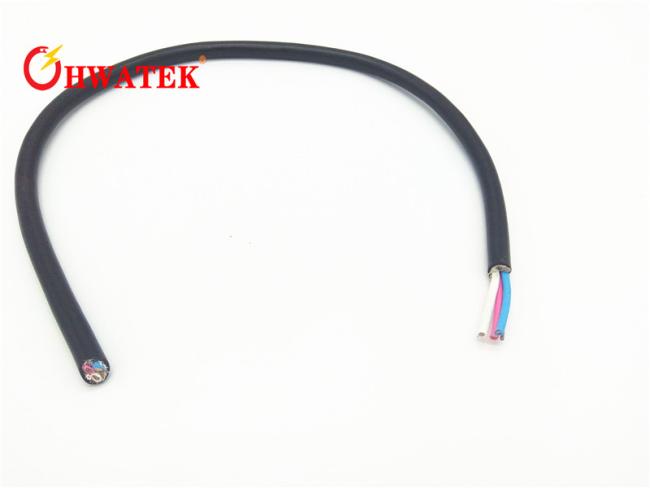

UL2562 Multiple-conductor cable using non-integral jacket, 80 ℃, 300 V VW-1, 60 ℃ or 80 ℃ Oil

Construction with UL2562 Hook Up Wire

Conductor : Solid or Stranded
Insulation: PVC,PE, SRPVC, PP

Shield or Braid: Optional

Jacket: PVC

Standards with UL2562 Hook Up Wire
International: UL758 , UL1581, UL2556

RoHS,REACH Compliant,

Technical data with UL2562 Hook Up Wire
Rated voltage:300 V
Rated  Temperature:-40℃-80℃

Flame: VW-1, FT1, FT2
Oil resistance: 60 ℃ or 80 ℃ Oil

Voltage withstand test:AC 2.0kV/1min

Printing :E258652    AWM STYLE 2562 AWGXX 80℃ 300V VW-1 ---c AWM I A/B 80℃ 300V FT1 -LF-HWATEK
Note: Where "XX" means AWG No.

Specifications

Certificates

UL, CUL, CE

Packing and Shipping with UL2562 Hook Up Wire

1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
4. The cargo, manufacturer, packing details will be labeled on the outer packing;
5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
6. Shipping term, It depends on the value of the goods and the will of the custome
