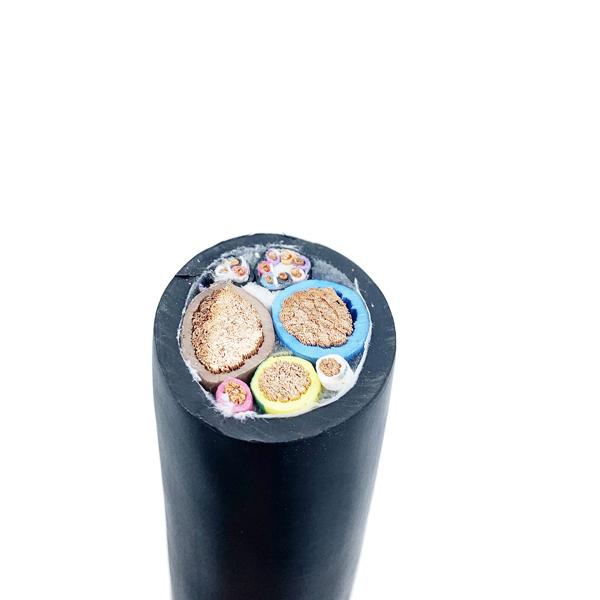

1000V Hv High Voltage EV Charging Cable Multicore DC Electric
1000V Hv High Voltage EV Power Charger Multicore DC Electric Wire Cable
| SPECIFICATION | CABLE NAME | EV Cable | |||||
| CABLE SPEC | 2C×80mm2+1C×25mm2+2C×4mm2+(3C×0.75mm2)(P2)+(7C×0.75mm2) | ||||||
| RoHS Compliant | |||||||
| Item | A : 2C×80mm2 | B : 1C×25mm2 | C : 1C×4mm2 | D:(3C×0.75mm2)(P2) | E:(7C×0.75mm2) | ||
| CONDUCTOR | Material | Bared copper stranded | |||||
| Size | 2580/0.20 ±0.008mm | 798/0.20 ±0.008mm | 224/0.15±0.008mm +10/1#Tinsel+1000D Kevlar |
40/0.15±0.008mm+ 10/0.19mmTinsel+200DKevlar |
40/0.15±0.008mm+ 10/0.19mmTinsel+200D Kevlar |
||
| O.D.(Ref.) | 12.40±0.25mm | 7.00±0.20mm | 2.70±0.15mm | 1.40±0.10mm | 1.40±0.10mm | ||
| INSULATION | Material | Thermoplastic(EF2585,85±3A) | |||||
| Min. average thickness | 1.60mm | 1.20mm | 1.00mm | 0.50mm | 0.50mm | ||
| Min.thickness at any point | 1.34mm | 0.98mm | 0.80mm | 0.35mm | 0.35mm | ||
| O.D. | 15.60±0.40mm | 9.60±0.30mm | 4.70±0.20mm | 2.50±0.10mm | 2.50±0.10mm | ||
| CABLING-1 | Filler | / | Cotton | Cotton | |||
| Material | / | AL-mylar(facing out) | Non-woven | ||||
| BRAID | Material | / | Tinned copper | / | |||
| Size | / | 0.12mm,≥60% | / | ||||
| In-JACKET | Material | / | TPE | TPE | |||
| Min. average thickness | / | 0.60mm | 0.60mm | ||||
| Min.thickness at any point | / | 0.42mm | 0.42mm | ||||
| O.D. | / | 7.20±0.25mm | 9.70±0.25mm | ||||
| CABLING | Filler | Strengthed PP rope | |||||
| Material | Non-woven(≥25% overing) | ||||||
| Assembly | 2C×80mm2+1C×25mm2+2C×4mm2+(3C×0.75mm2)(P2)+(7C×0.75mm2) | ||||||
| JACKET | Material | TPU | |||||
| Min. average thickness | 2.80mm | ||||||
| Min.thickness at any point | 2.28mm | ||||||
| O.D. | 38.00+0.6/-1.00mm | ||||||
| ELECTRICAL CHARACTERISTICS | |
| Rated voltage:DC 1000V | |
| Rated temperature:Jacket -40~90℃ | |
| Insulation -40~125℃ | |
| Max. conductor resistance(20℃): | |
| A:0.242Ω/km B:0.78Ω/km C:4.95Ω/km D&E:26Ω/km | |
| Insulation Voltage withstand(Core A&B,10m): | |
| AC 2.5kV/5min,leakage current ≤5mA | |
| Completed cable Voltage withstand(Core A to A&B,10m): | |
| AC 3.5kV/15min,leakage current ≤5mA | |
| Min. Insulation resistance(20℃, Core A to A&B):500MΩ.km |
| PHYSICAL PROPERTIES | |||||
| Tensile strength:≥20MPa | High temperature pressure test:≤50% | ||||
| Elongation:≥300% | Heat shock test:No crack | ||||
| Aged condition:110±1℃×168h | Compatibility test:GB/T 33594 | ||||
| Percent of original tensile strength:≤±30% | Crush resistance test:GB/T 33594 | ||||
| Percent of original elongation:≤±30% | Curved around the test:GB/T 33594 | ||||
| Flame test:GB/T 18380.12-2008 | Min. Bend radius:6*OD | ||||
| Artificial weathering test:GB/T 33594 | Abrasion resistance:≥2000times | ||||
| Low-temperature impact test :-40℃×16H,No crack | Resistance against chemicals:GB/T 33594 | ||||
| Chemical stress acid: N-Oxal-acid alkaline solution, N-sodium hydroxide solution:GB/T 33594 | |||||
| Vehicle rolling:Requirements and test methods should be consistent with GB/T 20234.1-2015 7.21 | |||||

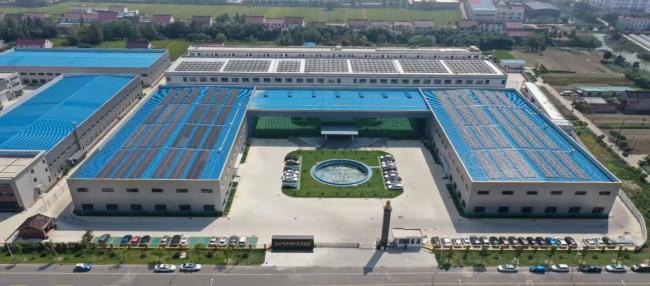

Company Profiles
Our Competence at
1. Produce Cables with Following Insulation & Jacket PVC, SR-PVC, XL-PVC(CL PVC), XLPE, FRPE, TPE, FEP Etc.
2. Produce Cables with Temperature Range from -40 to 200 Degree Temperature.
3. Produce Cables with Volatge Range from 30V to 1200V DC.
4. Flamability Rating - VW-1, FT1, FT2.
5. We have 300 Plus different UL Style approval from UL Authority.
6. QMS Certification- ISO9001-2015, IATF16949-2016, ISO13485-2016.
7. Product Certification -CCC, UL, CSA, ETL, CE.
8. We can support drop-in equivalent to any Brand of Cables and Custom made Cables.
Certificates

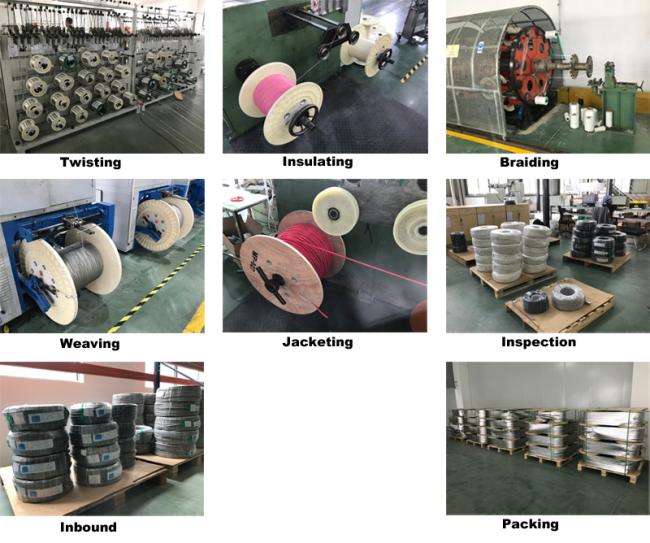

Production Progress
Shipping
FAQ
1.Q:What can you supply?
A: We do produce consumer electronics wires, hock up wires, industrial cables, robot cables, ev charging cables, new/green energy cables.
2.Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
3.Q:Can we get samples before ordering?
A:Yes, we are willing to arrange samples for you.
4.Q: What's your lead time?
A: Normally we can finish you orders in 2-3 weeks, and 5-6 weeks in peak season.
5.Q. How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final Inspection before shipment.
