6AWG UL10455 Conductor Bare Stranded Copper Copper Green Yellow
Price:
$0.2-1
MOQ:
305m,610m or as Request
Delivery Time:
4-5 Weeks
Brand:
Hwatek
Product Description

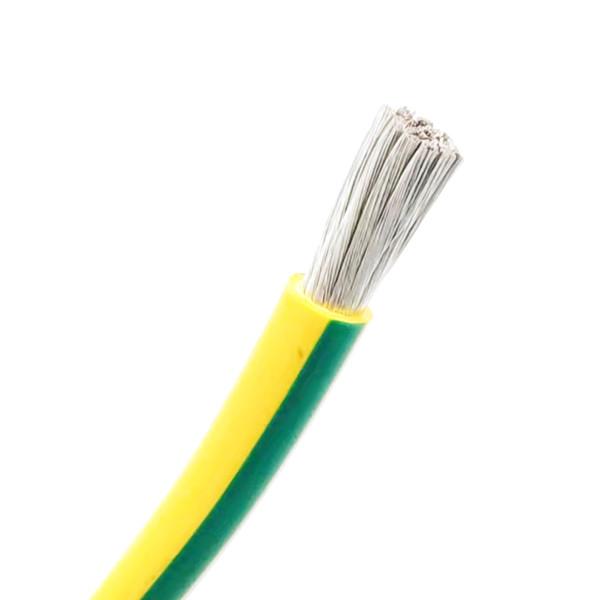

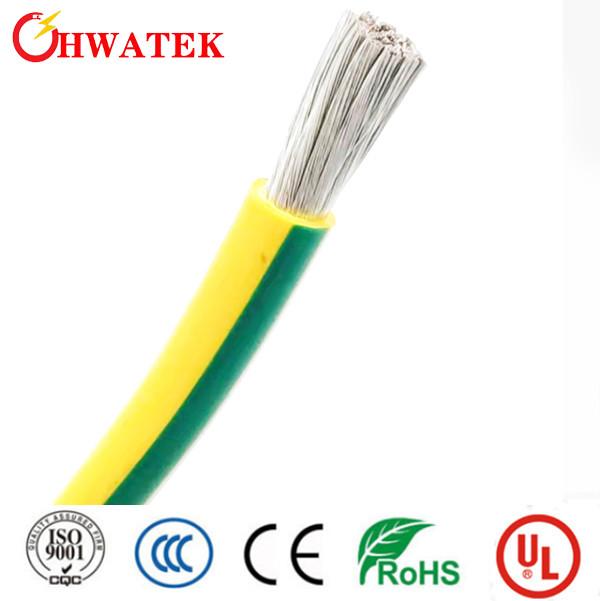

6AWG, UL10455, Conductor- Bare Stranded copper, 90 deg C, 600 V, PVC, COLOR-GREEN/YELLOW Cable
Product Description
Product Description
| ITEM | 6AWG(266/0.254B) | ||||
| CONDUCTOR | Material | Bare copper stranded | |||
| Size | 266/0.254mm | ||||
| O.D.(Ref) | 5.1mm | ||||
| INSULATION | Material | PVC | |||
| Min.average thickness | 1.08mm | ||||
| Min.thickness at any point | 1.2mm | ||||
| O.D. | 7.7±0.30mm | ||||
| CABLING | Assembly | 6AWG(266/0.254B) | |||
| JACKET | Material | PVC | |||
| Min.average thickness | 0.76mm | ||||
| Min.thickness at any point | 0.61mm | ||||
| O.D. | 9.30±0.30mm | ||||
Construction
Conductor : stranded, tinned or bare copper
Insulation: PVC
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International: UL758 , UL1581, UL10455
RoHS,REACH Compliant,
Technical data
Rated voltage:600V
Rated Temperature:90℃
Flame: FT1
Voltage withstand test:AC 2.0kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible
