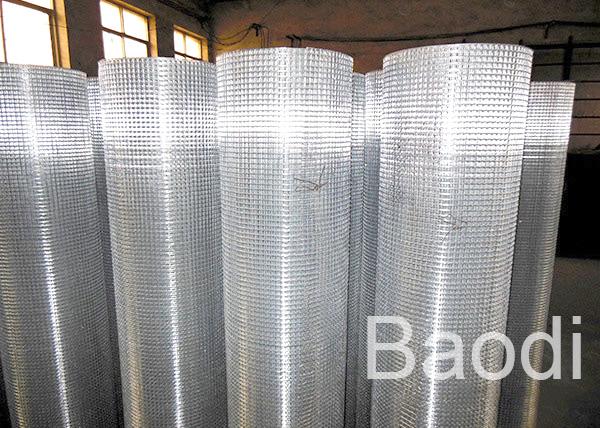

In Roll Galvanized Welded Wire Screen Fabric 30m Length For Building
In Roll Galvanized Welded Wire Fabric 30m Length For Building
It’s made of high quality iron wire or stainless steel wire by welding to form mesh structure and square pattern.
Surface Treatment: Electro galvanized, hot dipped galvanized, PVC coated, or power coated.
Features:
- Solid construction;
- Easy handling;
- Wires resist movement;
- Flush edge trim available
Application:
Used widely in industry, agriculture, building, transportation, mine, field, lawn. cultivation .etc. profession's guard decorate, machine protection etc.
Process:
The wire fabric is made up of iron wires arranged in parallel fashion in two orthogonal directions, with the points of contact being welded between the wires by electrical welding process (spot welding) by welding machine.
It could be packed in plastic film or waterproof paper.
Specification List
|
Mesh Opening |
Wire Diameter<BWG> |
|
|
In inch |
In metric unit(mm) |
|
|
1/4" x 1/4" |
6.4mm x 6.4mm |
22,23,24 |
|
3/8" x 3/8" |
10.6mm x 10.6mm |
19,20,21,22 |
|
1/2" x 1/2" |
12.7mm x 12.7mm |
16,17,18,19,20,21,22,23 |
|
5/8" x 5/8" |
16mm x 16mm |
18,19,20,21, |
|
3/4" x 3/4" |
19.1mm x 19.1mm |
16,17,18,19,20,21 |
|
1" x 1/2" |
25.4mm x 12.7mm |
16,17,18,19,20,21 |
|
1-1/2" x 1-1/2" |
38mm x 38mm |
14,15,16,17,18,19 |
|
1" x 2" |
25.4mm x 50.8mm |
14,15,16 |
|
2" x 2" |
50.8mm x 50.8mm |
12,13,14,15,16 |
|
Galvanized Fencing Mesh |
||
|
Mesh Opening |
Wire Diameter<BWG> |
|
|
In inch |
In metric unit(mm) |
|
|
2" x 3" |
50mm x 75mm |
2.0mm,2.5mm,1.65mm |
|
3" x 3" |
75mm x 756mm |
2.67mm,2.41mm,2.11mm,1.83mm,1.65mm |
|
2" x 4" |
50mm x 100mm |
2.11mm,2.5mm |
|
4" x 4" |
100mm x 100mm |
2.0mm,2.5mm |
Packing Detail: Roll Welded Wire Fabric is packed in plastic film or waterproof paper.
