ISO9001 Pressure Locked Steel Grating Saddle Clip Fixed Integrated Type
25 / 3 , 30 / 3 Integrated Type Pressure Locked Grating Saddle Clip Fixed
We promise : cost price for the first cooperation
Our advantages :
a. We are local manufactory---price are much competitive.
b. We have done international business for more than 20years-- high reputation in worldwide.
c. We adhere to the operational theme of “We only produce products to you praise".
| Product Details | ||
| No. | Terms | Description |
| 1 | Material | Low carbon,middle carbon,stainless steel |
| 2. | Material standard | GB700-88,ASTM(A36),BS4360(43A),AS3679 |
| 3. | Bearing bar size |
20*3,20*5,25*3,25*5,32*3,32*5,35*3,35*5, 40*3,40*5,45*5,50*3,50*5,55*5,60*5,65*5mm etc, |
| 4. | Bearing bar pitch | 15,20,25,30,33,35,38,40,50,60,80,90mm |
| 5. | Cross bar pitch | 24-200mm |
| 6. | Surface treatment | Hot dipped galvanized,painted,self-color, |
| 7. | Grating standard | YB/T4001.1-2007,ANSI/NAAMM(MBG531-88),BS4592-1987,AS1657-1985 |
| 8. | Bearing bar type | F,I ,S,IS type |
| 9. | Application | Floor walkway,industrial platform,stair tread,metal ceiling |
| 10. | Feature |
Fine appearance,anti-corrosive,simple installation,light weight, high load,anti-skid,Prevent dirt deposition,ventilation,anti-explosion |
| 11. | Payment terms | TT,L/C |
| 12. | Package |
Pallets in containers packed by steel strap and worthy sea shipping, or according to the customers' requirements |
| 13. | Product capacity | 10days for a 20” |

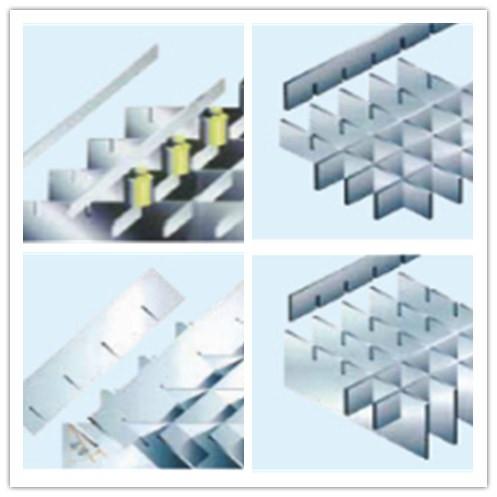

Our products details

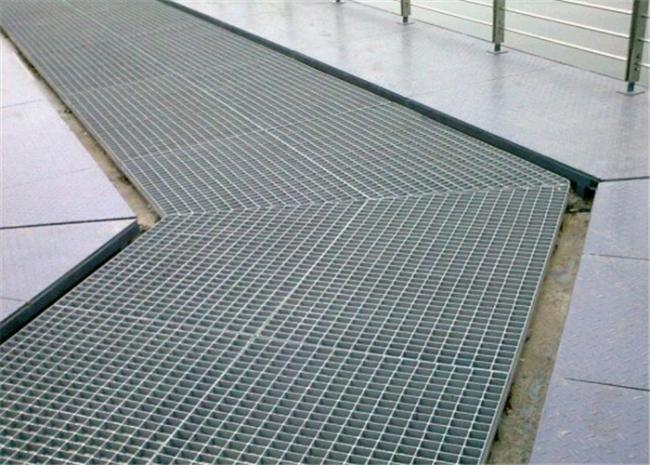

Steel grating application:
Package:Pallets in containers packed by steel strap and worthy sea-shipping, or according to the customers' requirements
How to order:
1. Kindly indicate the specifications,size,quantities,and required surface treatment of steel grating.
2. Give type and quantity of fastener.In principle,each piece of grating needs four sets of fasteners.
3. Please offer construction plan when big floor areas are required to cover with steel gratings.
Also provide constructional elevation drawing and joint details as well as section size and location of supporting steel beam,
if any openings are required on such floor areas.
4. When ordering stair treads,please state out types of stair treads,and the specification,length,width,
quantity and required surface treatment for grating used.
1. How can I get a exactly quotation?
There are three ways:
* You can tell me the bearing bar size and the pitch of bearing bar and cross bar
* You can tell me the carrying capacity of per square meter and the maximum span.
* You can send me the drawings about steel grating
2. how about your factory strength?
we have more than 100 staff,and there are 40 have 20 years of experience in this industry.
We have a complete set of production line.
3. which countries do you export to?
We currently export to Singapore,Vietnam,USA,Kuwait,Austria, Japan and so on.
4. the sample question
we can supply free common steel grating sample and the sample will be readly in four days.
5. the delively problems
we usually need 20 days to produce 20' container(about 20tons) after recieving the 30% deposit
