Rectangular Electrical Connectors HW-42ZK291-P2-261
Price:
10＄--150＄
MOQ:
100PCS
Delivery Time:
2--9 weeks
Brand:
HIGH WOOD
Product Description
Rectangular Electrical Connectors HW-42ZK291-P2-261
HW-42ZK291-P2-261
The product has the advantages of high density, lightweight and miniaturization, which can realize the reliable interconnection of the electrical circuit system from cable to cable, cable to printed board, and between printed board and printed board.
The product can withstand strong vibration, shock and other harsh operating environment, especially suitable for the use of space, equipment lightweight has special requirements for the use of the occasion.
Specification:
| Technical characteristics | |
|---|---|
| Ambient temperature | -55 ℃ ~ +155 ℃ |
| Vibration | 10Hz~2000Hz
|
| Impact | 735m/s² 11ms |
| Electrical performance indicators | |
| Pressure resistance | 800V |
| Insulation resistance | ≥5000MΩ 100VDC |
| Contact resistance | ≤15mΩ |
| Rated current | 3A |
| Mechanical performance indicators | |
| Mechanical life | 500 plugging and unplugging times |
| Material and coating | |
| Shell | Aluminum alloy nickel plating |
| Insulator | PPS |
| Inner conductor | Copper alloy gold plating |

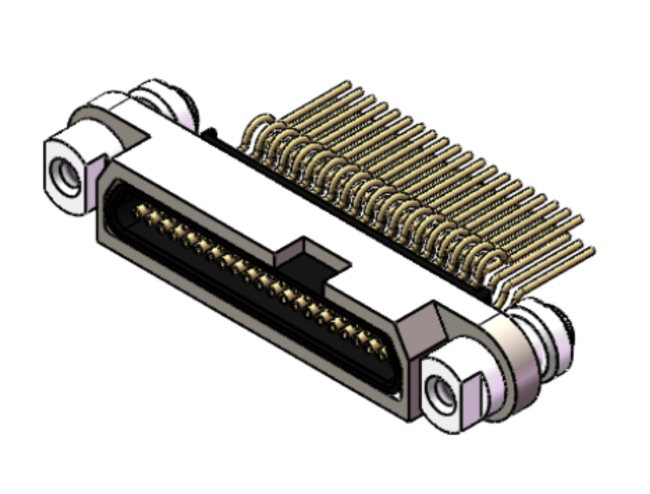

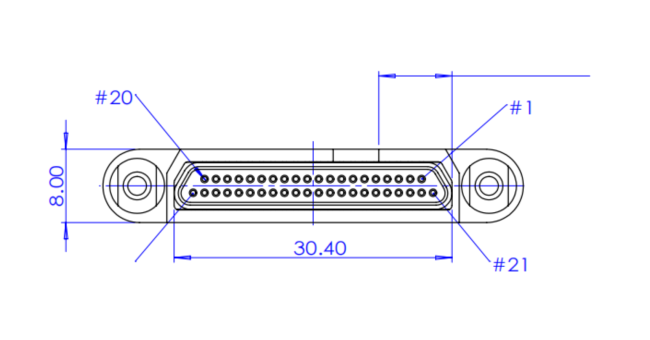

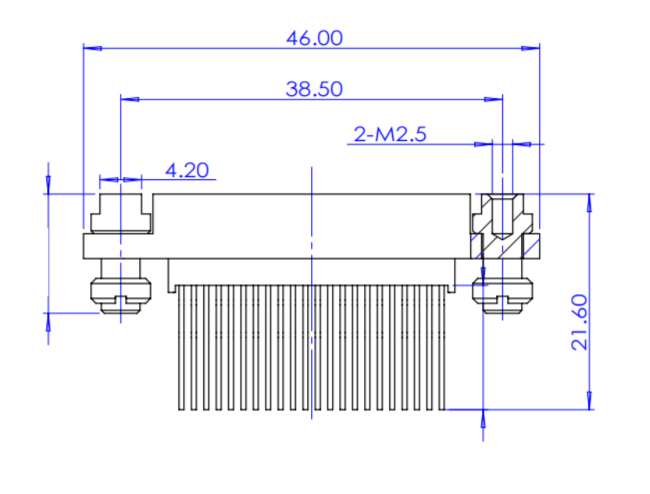

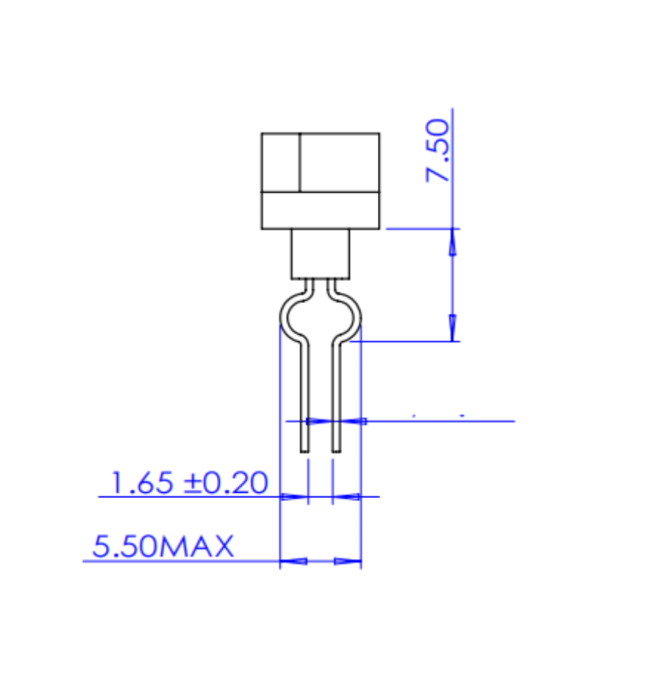

Drawings:
Product showing:
