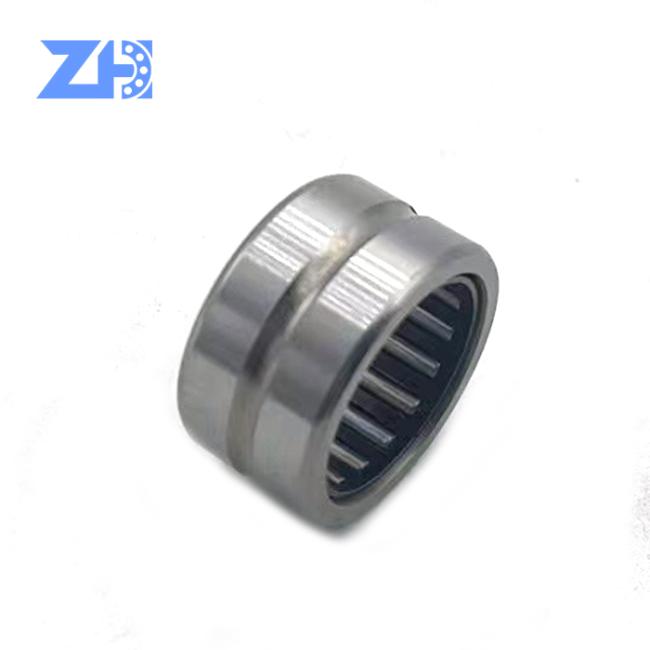

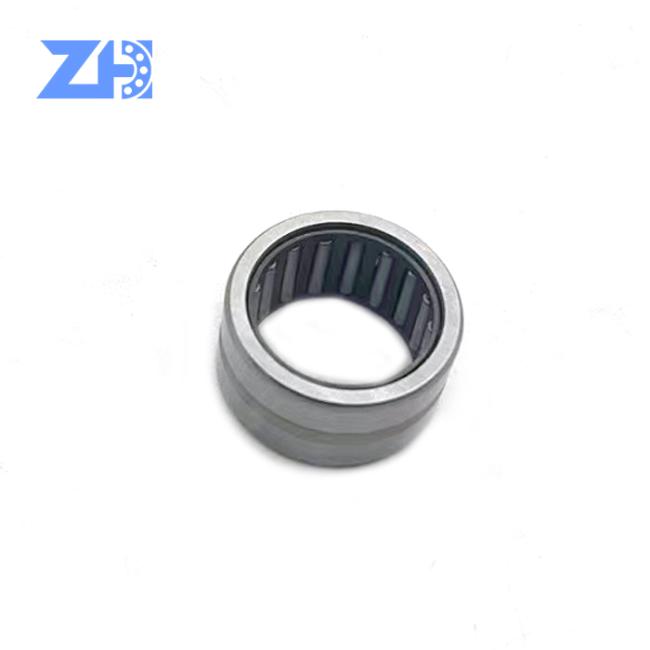

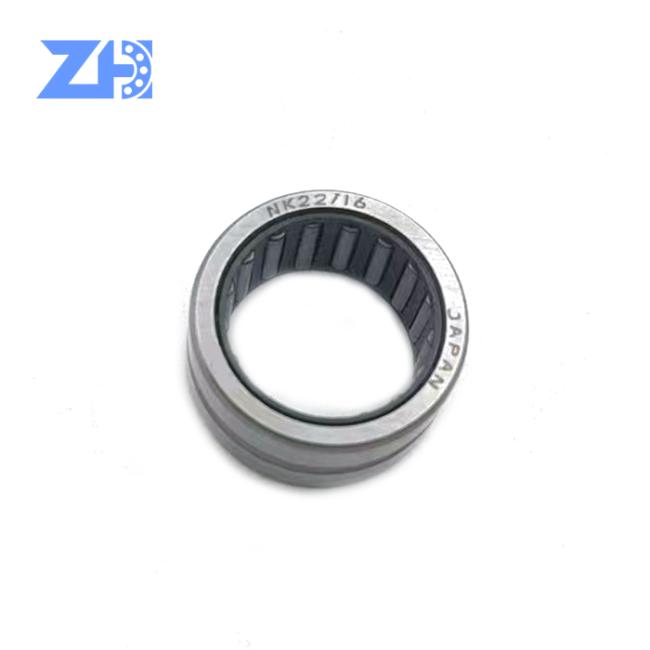

NK22/16 Needle Roller Bearing Without Inner Ring 22mm Inside X 30mm Outside X 16mm
Good Quality NK22/16 Needle Roller Bearing Without Inner Ring Size 22x30x16 Mm
Bearing Data
| P/N | NK22/16 | ||
| Brand |
Z H |
||
| Dimension | Standard | ||
| Precision | Normal | ||
| Type | Needle Roller Bearings | ||
| Lubriexcavatorion | Oil | ||
| Material | 52100 Chrome Steel | ||
| Package | Plastic Bag and Box |
||
Appliexcavatorion: Needle roller bearings are widely used in cars, compressors, construction, electric motors, food industry, home appliances etc. As a rolling element, it turns the world.
Needle roller bearings with ribs:
The outer ring forms a self-retaining unit with the needle roller and cage assembly. These radially compact bearings with high load capacity are highly suitable for designs with limited radial space. The bearings are available with and without inner ring and in both sealed and open versions.
Bearings without an inner ring are the best solution for bearing arrangements where the shaft can be hardened and ground.
Needle roller bearings with an inner ring are used if the shaft is not configured as a rolling bearing raceway.
Dimensions:
Fw: 22mm
D: 30mm
C: 16mm
r min: 0.3mm
Basic dynamic load rating, radial: 15800 N
Basic static load rating, radial: 19900 N
Fatigue limit load, radial: 3650 N
Limiting speed: 18800 1/min
Reference speed: 10900 1/min
Mass: 30.0g
| Package | Plastic Tube for bearings, and carton package outside | ||||||
| Shipping | Express,air shipment, and sea shipment are available | ||||||
| Service | OEM Service, and can print your onw logo after authorization | ||||||
We can get back to you quickly, usually within 1 business day and try our best to meet your requirements of package, shipping and other points you concern
We are based in Shandong, China, start from 2008,sell to Domestic Market(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Deep Groove Ball Bearing, Angular Contact Ball Bearing, Tapered Roller Bearing, Needle Roller Bearing, Thrust Ball Bearing
4. why should you buy from us not from other suppliers?
null
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
