RS485 4G CCTV CMOS Vehicle Mounted PTZ Camera 100m IR
4G CCTV Security Vehicle Mounted PTZ Camera 100m Infrared IR Night Vision
Specification
• High strength alloy aluminum crust, shock resistance, corrosion protection in all weather conditions.
• PTZ has super seismic characteristics, this system is especially good for Vehicle monitoring or prison monitoring.
• PTZ has a built-in decoder, integrate multiple protocols.
• 360°Continuously rotation, no bilnd angle surveillance.
• Vehicle power voltage input range: DC10.5V~DC18V. Perfect for all kinds of vehicle, car, truck and robots.
• Built-in Defrosting and Defogging devices,which ensures the normal use in temperature difference environment.
• Acceptable to a variety signals of PTZ ,IP/SDI/AHD/TVI/CVI/Analog.
• Network PTZ supported network and analog dual-outputs, dual control, via RS485 and RJ45 network port.
• With infrared LED range up to 150 meters night vision. It could catch image promptly at night.
• Supporting coordinates and angles to accept instructions.
• Camera with WDR option for better image, WDR( Wide Dynamic Range) 120dB.
• 1/2.8" CMOS 4.7~94.0 mm 20x optical zoom 2.0MP, 1920*1080P. More clear image.
• Built in 4G module, 4G transmission, support real time viewing & control.
Technical Data
| Model | OK-CT100GR-20IP-4G | OK-CT100GR-30IP-4G | |
| Data of PTZ camera | Image sensor | 1/2.8 type Exmor CMOS | 1/2.8 type Exmor CMOS |
| Pixel | 2.0 Megapixel | 2.0 Megapixel | |
| Resolution | 1920*1080 | 1920*1080 | |
|
Minimum illumination |
0.095lx(F1.6. ICR ON) | 0.095lx(F1.6. ICR ON) | |
| Lens zoom | 20X Optical zoom | 30X Optical zoom | |
| Focus | f=4.7mm~94.0mm | f=4.5mm~135.0mm | |
| Ajustment | white balance,automatic gain control AGC,BLC | white balance,automatic gain control AGC,BLC | |
| SNR | ≥50 db | ≥50 db | |
| Electronic shutter | 1/1s- 1/10000s | 1/1s- 1/10000s | |
| Port function | Network port | RJ45 10Base-T/100 Base-TX PoE(IEEE802.3af) | RJ45 10Base-T/100 Base-TX PoE(IEEE802.3af) |
| Hikvision,Sony,Samsung,Hitachi,and other brands HD Camera chipest | |||
| 4G Function | Built in 4G module, 4G transmission, support real time viewing & control. | ||
| Video | video compressor | H.264 / H.265 | |
| Image pixel | 1080P 25/30P | ||
| Night vision | Lighting | 850nm IR infrared | |
| vision distance | 120m | 150m | |
| Camera data | Horizontal range | 360° rotation | |
| Horizontal speed | 0~120° | ||
| Vertical range | +90°~-25° | ||
| Vertical speed | 0~10°/S | ||
| Preset | 256 preset positions | ||
| Cruise | 8 pcs cruise | ||
| IP rate | IP66 protection | ||
| Other feature | work temperature | -35℃~+55℃ | |
| Power supply | DC10.5V~DC16V | ||
| weight | 7.0kg | ||
Dimension of OK-CT100GR
Applications

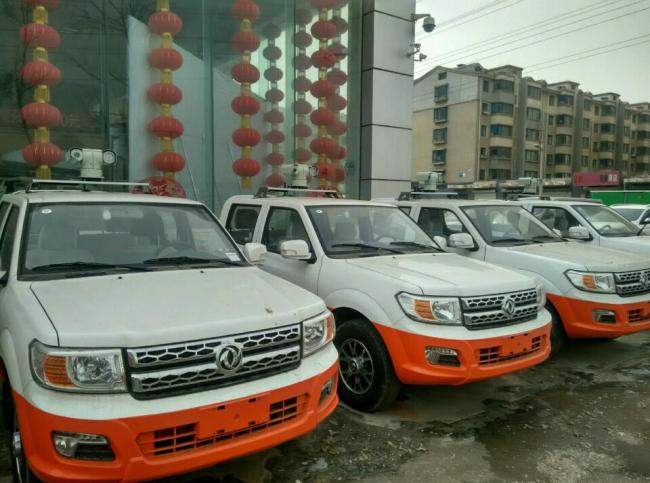

OKAF 4G Vehicle PTZ camera has been widely applicable to the field of Police, highways, urban management , Law enforcement vehicles, fire fighting truck,Highways,secondary planet communication directorial vehicle, Train and other special vehicle monitoring, Top Mounting, it can be used to obtain evidence, emergency rescue, scene investigation,Construction work, accident treatment, rescue and emergency illumination such as in the bad lighting conditions environment.
