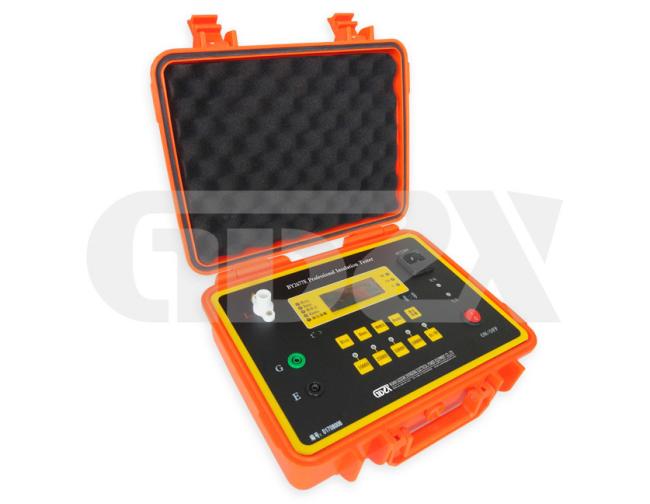

10kV Portable Insulation Resistance Tester Automatic High Voltage Digital
BY2677E Insulation resistance tester is designed and developed to evaluate the electrical insulation quality of large-scale high-voltage transformer, motor, generator, long-distance power cable, tubular bus and other electrical insulation quality under strong interference in high-voltage substation and power plant. It is especially suitable for the test site with large capacity and strong interference above 110kV.
Features
1. Wide voltage range: 1KV,2.5KV,5KV,10KV
2. Can test up to 2TΩ insulation resistance
3. 3½ LCD digital display of insulation resistance value
4. Auto shift resistance measuring range
5. Environment temperature can be measured
6. Self-clocking function, short buzz every 15 seconds
7. Auto calculate and save R15S, R60S, R600S, DAR and Polarization Index
8. Output short-circuit current≥3mA which meets fast charging request to capacitive load
9. Strong anti-interference ability, stable and reliable reading
10. Perfect protection, safe for operation
11. Powered by rechargeable Li-battery, auto power off when battery energy is not enough.
Technical Indicators
1. Power dissipation of the entire machine: ≤10W
2. Working temperature and humidity: 0℃~40℃; ≤ 85 % RH
3. Withstand: AC2.5kV 50HZ 1min
4. Working Power supply: 14.8V(2.2Ah) rechargeable Li-battery
5. Charging supply: AC200V,50HZ (±10 %) (can be customized)
6. Size and weight: 270mm(L)*210mm(W)*100mm(D); 2kg
| Rated voltage(V) | 1000 | 2500 | 5000 | 10000 |
| Working voltage(V) | Rated voltage×( 1±10%) | |||
| Measuring range | 0~200GΩ | 0~500GΩ | 0.001~1000GΩ | 0.001~1999GΩ |
| Max error:±10%RDG+1d (max display value: 1999) | ||||
|
Short circuit output current |
≥1.5mA | ≥1.5mA | ≥3mA | ≥3mA |
|
Absorption ratio, polarization index |
Measuring range 0.1~19.99, max error:±2%RDG+1d | |||
