10 Ton Maximum 3 Phase Electric Wire Rope Winch KDJ Model
Price:
USD negotiate per unit
MOQ:
1 unit
Delivery Time:
10 -15 working days
Brand:
JCYC
Product Description

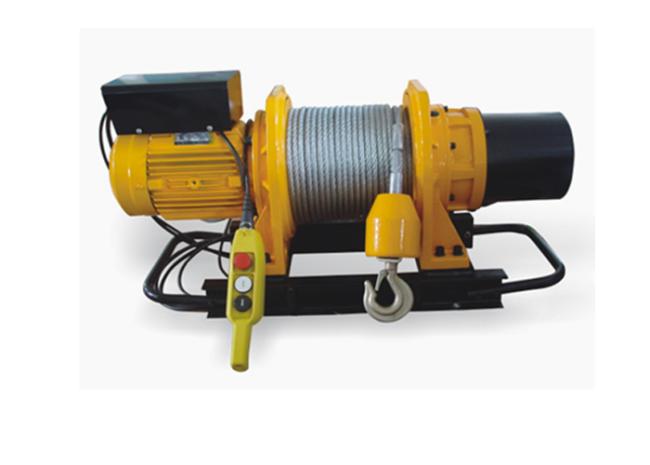

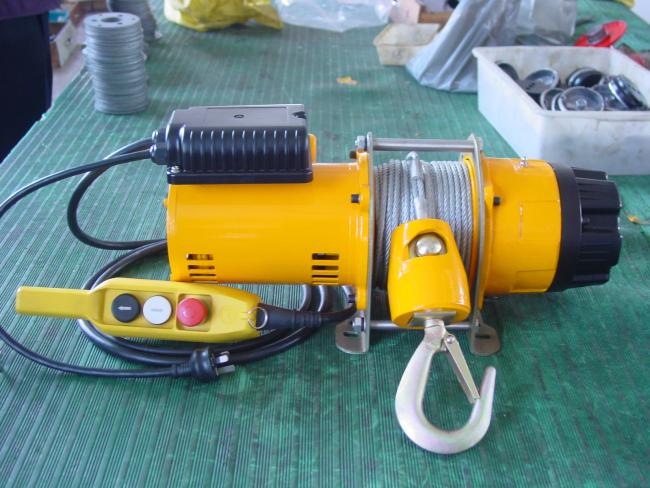

3 Phase Electric Wire Rope Winch 220v - 440v 200Kg - 10000 Kg Capacity KDJ Model Light Weight
Product Description
KDJ Multifunctional Electric Hoist is a steel wire rope hoist for lifting goods, the capacity is from 0.3T to 1T, the length of wire rope is from 30M to 60M more,the usage is pulling and lifting,except exclusive-use, also can match-use with electric trolley and plain trolley, geared trolley, these trolleys with simple structure, light weight, easy to load and unload. Be widely used in warehouse, construction and many kinds of producing-line.
The product has the characteristic brake promptly,small volume,light, compact, convenient and easy to maintain.
The product has the characteristic brake promptly,small volume,light, compact, convenient and easy to maintain.
| Model | Load rated (kg) | Speed M/min | Motor hpxp | Voltage | Lifting | Wire Rope | G/ N.W. | Packing size |
| Freq. | Height | φmmxm | (KG) | cm | ||||
| (M) | ||||||||
| KDJ-200E | 200 | 10-15 | 0.8x4 | 110-240v 1ph 50/6hz | 29 | 6x30 | 36.5//35.2 | 58×33×31 |
| 12-18 | ||||||||
| KDJ-250E | 250 | 10-15 | 1.0x4 | 29 | 6x30 | 41/39.5 | 61×33×32 | |
| 12-18 | ||||||||
| KDJ-300E | 300 | 10-15 | 1.5x4 | 29 | 7x30 | 47/45.5 | 64×33×32 | |
| 12-18 | ||||||||
| KDJ-300E1 | 300 | 10-15 | 1.5x4 | 220-440v 3 ph 50/60hz | 29 | 7x30 | 50/48 | 64×33×32 |
| 12-18 | ||||||||
| KDJ-500E1 | 500 | 12-18 | 2.5x4 | 58 | 9x60 | 156/139 | 104×51×62 | |
| KDJ-750E1 | 750 | 12-18 | 3.5x4 | 58 | 9x60 | 167/150 | 104×51×62 | |
| KDJ-1000E1 | 1000 | 12-18 | 5x4 | 11x60 | 178/161 | 104×51×62 | ||
| KDJ-2200E1 | 2200 | 7-12.5 | 7.5x4 | 97 | 16x100 | 500/450 | 156×70×81 | |
| KDJ-3200E1 | 3200 | 6.3-8.8 | 7.5x6 | 97 | 18x100 | 550/500 | 156×70×81 | |
| KDJ-3500E1 | 3500 | 6.3-8.8 | 10x4 | 140 | 18 x143 | 600/550 | 156×70×81 | |
| KDJ-5000E1 | 5000 | 8.0-12 | 15x4 | 192 | 22.4 x200 | 2700/2580 | 210×120×135 | |
| KDJ-10000E1 | 10000 | 7-11 | 30x4 | 235 | 32 x 250 | 3200/3080 | 230×120×135 |
