2 Ton Single Double Sheave Snatch Lifting Pulley Block With Hook
2 Ton Heavy Duty Single Sheave Double Sheave Snatch Lifting Pulley Block With Hook
Brief Introduction:
2 Ton Heavy Duty Single Sheave Double Sheave Snatch Lifting Pulley Block With Hook is an important lifting tool with simple structure and use conveniently. It can change direction of pulley, steel rope and can lift high weight cargoes, especially series of pulley combined with windlass, mast and other lifting machinery. They are widely used in installation in construction and divides into hook type(open type) and ring type(closed type).
Advantages:
1. High-quality materials: the overall body is forged by high-quality steel .
2. Hook: thicken type hook special made for pulley.The hook is precisely forged by round steel with higher bearing capacity.
3. Lifting pulley: It is forged by high-quality steel, groove design is reasonable. With the coating treatment of the surface, it will not hurt the rope and reduce power loss.
4. High-quality directional wheel: It adopts high grade alloy steel and precisely made with hot quenching, which is durable and high strength.

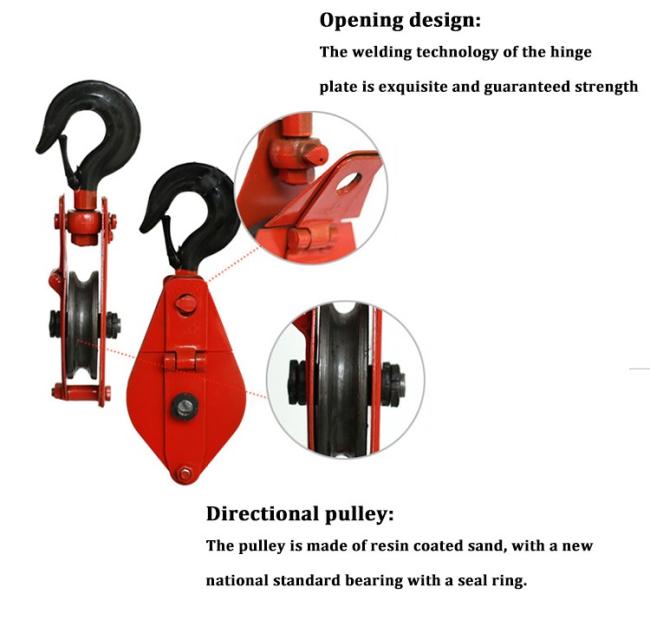

Product detail shows:
Product parameters:
Single Wheel Hook Type
| Model | Rated capacity(t) | Test load(kn) | Sheave Dia.(mm) | For wire dia.(mm) | Weight(kg) |
| HQGK1-0.5 | 0.5 | 8 | 71 | 6.2-7.7 | 1.6 |
| HQGK1-1 | 1.0 | 16 | 85 | 7.7-11 | 3.1 |
| HQGK1-2 | 2.0 | 32 | 112 | 11-14 | 6.1 |
| HQGK1-3.2 | 3.2 | 51.2 | 132 | 12.5-15.5 | 10 |
| HQGK1-5 | 5 | 80 | 160 | 15.5-18.5 | 17 |
| HQGK1-8 | 8 | 128 | 210 | 20-23 | 33 |
| HQGK1-10 | 10 | 160 | 240 | 23-24.5 | 43 |
| HQGK1-16 | 16 | 224 | 315 | 28-31 | 100 |
| HQGK1-20 | 20 | 280 | 355 | 31-35 | 133 |
Double Wheel Hook Type
| Model | Rated capacity(t) | Test load(kn) | Sheave Dia.(mm) | For wire dia.(mm) | Weight(kg) |
| HQGK2-1 | 1 | 16 | 71 | 6.2-7.7 | 3.3 |
| HQGK2-2 | 2 | 32 | 85 | 7.7-11 | 6.5 |
| HQGK2-3.2 | 3.2 | 51.2 | 112 | 11-14 | 11 |
| HQGK2-5 | 5 | 80 | 132 | 12.5-15.5 | 18.5 |
| HQGK2-8 | 8 | 128 | 160 | 15.5-18.5 | 40 |
| HQGK2-10 | 10 | 160 | 210 | 20-23 | 47 |
| HQGK2-16 | 16 | 224 | 240 | 23-24.5 | 75 |
| HQGK2-20 | 20 | 280 | 315 | 28-31 | 125 |
| HQGK2-32 | 32 | 448 | 355 | 31-35 | 200 |
Triple Wheel Hook Type
| Model | Rated capacity(t) | Test load(kn) | Sheave Dia.(mm) | For wire dia.(mm) | Weight(kg) |
| HQGK3-3.2 | 3.2 | 51.2 | 85 | 7.7-11 | 10 |
| HQGK3-5 | 5 | 80 | 112 | 11-14 | 17.5 |
| HQGK3-8 | 8 | 128 | 132 | 12.5-15.5 | 33 |
| HQGK3-10 | 10 | 160 | 160 | 15.5-18.5 | 53 |
| HQGK3-16 | 16 | 224 | 190 | 17-20 | 70 |
| HQGK3-20 | 20 | 280 | 210 | 20-23 | 125 |
| HQGK3-32 | 32 | 448 | 280 | 26-28 | 140 |
| HQGK3-50 | 50 | 700 | 355 | 31-35 | 300 |
