Tools & Hardware Pipe Fittings

0.5'' Female Hydraulic Quick Connect Couplings

Price Negotiable
Price: Negotiation
MOQ: Negotiation
Delivery Time: 7-20 work days
Brand: carterberg
Product Description

Applications in agricultural machinery Iron and steel industry Agricultural Quick couplings





CB-8 Series couplings have nominal diameters no greater than 25 mm. they are designed and manufactured under Article 3.3 of the European Pressure Equipment Directive 97/23 EC.

Applications

Hydraulic circuits and equipment Forestry and agricultural machinery Iron and steel industry



Standard Materials

  • Zinc-plated steel
  • Seals: NBR, Viton, EPDM

Features

  1. Double shut-off couplings (ball valving)
  2. Pull-to-connect couplings
  3. Ball-locking
  4. Compatible with some other makes of couplings with the same profile
  5. Dust caps and plugs
  6. Compatible with HANSEN H55000 Series.

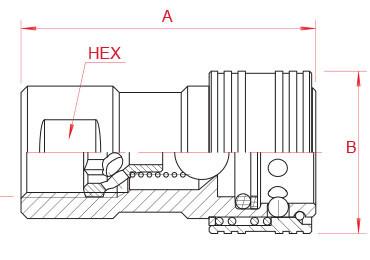

Body Size PARTNO. Thread A B HEX
3/8" CB-S3S-8FN-A G3/8 59 34 23
1/2" CB-S4S-8FG-A G1/2 69 38 27

Body Size PARTNO. Thread C D HEX
3/8" CB-P3S-8FN-A G3/8 42 19 23
1/2" CB-P4S-8FG-A G1/2 50 20.6 27
