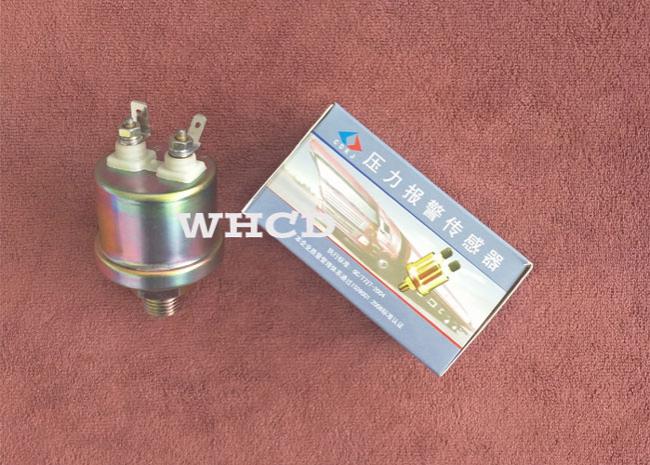

Thread Fitting M16x1.5 Air Pressure Alarm Sensor For Diesel Engines

Product Description

The oil pressure sensor is installed on the main oil channel of the engine. When the engine runs, the pressure measuring device detects the pressure of oil and transfers the pressure signal to the electrical signal to the signal processing circuit. The pressure signal is connected to the oil pressure meter. When the voltage is below the alarm voltage, the alarm circuit output the signal and pass through, alarm light is on.

Application

Oil pressure sensor is widely applied to many fields, such as the engine pipe of vehicle and ship, water processing project, inspection and control of industrial process, hydraulic and pneumatic control project etc.

Technical Data

Pressure range: 0 - 10 Bar

Power supply: 5.0 VDC

Output: 0.5 - 4.5 VDC

Measuring accuracy: ±1.5%FS

Material: cover(carbon steel), sensor(ceramic)

Pressure connection: NPT1/8, NPT1/4, M10, M12, customized.

Protection rating: IP66

Feature

It combines the advantages of excellent anti-vibration performance, long service life, simple assembly, stable quality, wide range of operating temperature, etc.

Delivery

Normally it’s 3-5 working days after payment cleared.

Payment

30% down-payment for production,the balance payment before shipment.

Packing

A: Product packed in foam box with bubble bag.

B: According to client’s requirement.

Shipment

DHL, Fedex, TNT, UPS, Airfreight and Ocean freight.

Advantage

1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for universal vehicles.
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
