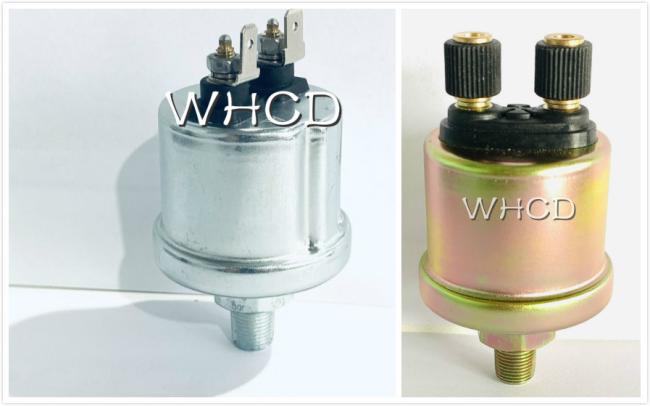

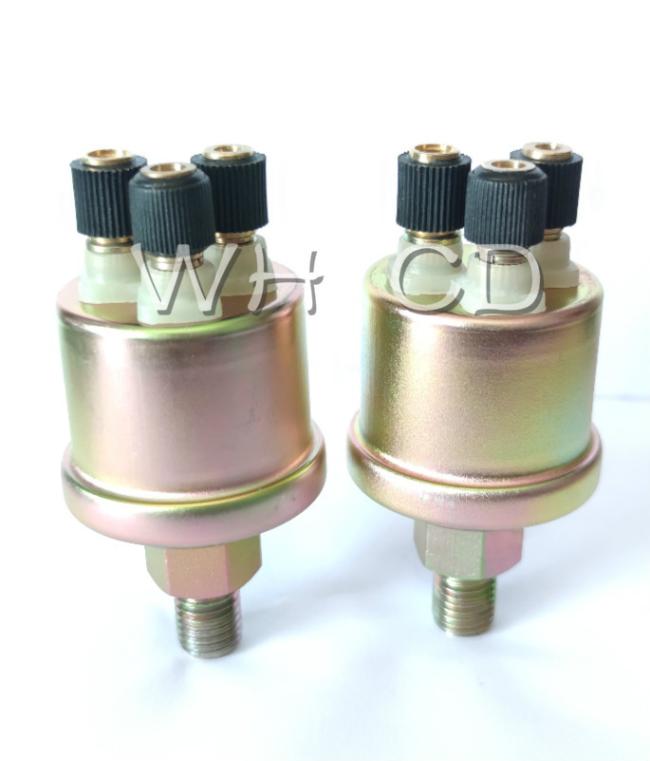

VDO Cummins 10-184Ω 0-10bar oil pressure sensor switch

INTRODUCTION :

• ✿ This oil pressure sensor is for VDO with thread type of 1/8-27NPTF, perfectly fitted for VDO models.
• ✿ The oil pressure sensor is of a protective threshold value of 1BAR and measuring range of 0-10BAR.
• ✿ The oil pressure sensor can accurately measure the pressure to be measured and transmit the test results to subsequent displays or controls as appropriate.
• ✿ The oil pressure sensor is an important part of engine, used for pressure measurement and control.
• ✿ You are welcome to contact us if you have any problem about our product, we will give you a satisfactory reply.

APPLICATION:

• ✿ It combines the advantages of excellent anti-vibrat ion performance, long service life, simple assembly process, stable quality, wide range of operating temperature, etc.
• ✿ The oil pressure sensor is of a protective threshold value of 1BAR and measuring range of 0-10BAR.It is largely applied t o many fields, such as t he engine pipe of vehicles and ships, water processing projects,inspection and control of indust rial processes, hydraulic and pneumatic control project s, etc.
• ✿ Protection rank: IP66

• ✿ Operating voltage: 6~24V
• ✿ Conducting power: <5W
• ✿Operating temperature: -25 ~120℃(120℃ MAX 1H)
• ✿ Measuring range: 0~5Bar or 0~10Bar
• ✿ Alarm: 0.8Bar or 1.4Bar customized
• ✿ Output signal: Standard resistance value: 10~184Ω
• ✿ Thread fitting: NPT1/4,NPT1/8,M10,M10X1 or customized as requires.

Parameters:

warranty :

Within one year after shipment, except for improper installation and operations by user.
