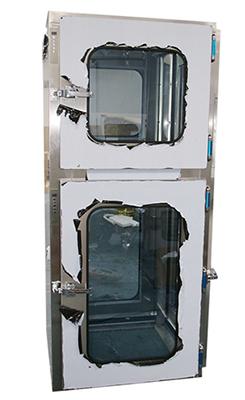

Customized clean room pass through box with interlocking doors on three sides

1. Cleanroom pass through box description

The Pass through box is a clean room auxiliary equipment, its function is to purify the goods pass the buffer between indoor and outdoor clean area to prevent items due to the pass to open the door and destroyed the clean room air and chamber pressure, morecan reduce the operating personnel move to prevent the entry of the dust of the outer region, the stability of the clean room. My company transfer window: wind leaching the transfer window, electronic interlocking transfer window, landing the transfer window, stainless steel transfer window, biological transfer window.
304 stainless steel mechanical interlock transfer window, cold-rolled plate spray mechanical interlocking pass the window Airshower pass window

2. Cleanroom pass through box Feature

1) There are two kinds: ordinary pass-box & air shower pass-box.

2) Material of outside wall is coated plate, interior is stainless steel.

3) OEM orders with customized designs and specifications welcomed.

4) Common sizes refer to the following form.

Accroding to the working principle,there are three pass box:

Nomal pass box :

the pass box is interlock on the both doors,and can not be opened at one time.they can prevent air pollution.

Tip:this model pass box can't completely to stop dust entrance.

Air shower pass box:

Air shower pass box is high efficiency filter and fan built-in in normal pass box.

It is suitable for cargo transfer from clean areas to unclean areas or from low clean areas to high clean areas.

Laminar flow pass box:

It is also suitable for cargo transfer from clean areas to unclean areas or from low clean areas to high clean areas.

But it is mainly applied to the Biopharmaceutical industry,and through the laminar flow filter to form the class100 clean area in laminar flow pass box,thus effectively prevent the pollution into clean room.

Product Description

Static pass box is a special equipment for transferring small articles between different clean
level areas. It can prevent air in the lower clean area to enter the higher clean area effectively.
The pass box is equipped with electronic interlock or mechanical interlock.

Configuration Option

1. Material: Powder coated steel, Polish SUS 201/304/316; Mirror SUS 201/304/316
2. Door Type: Standard external door; Embedded/concealed door; auto lifting door
3. Lock Type: Mechanical interlock, electromagnetic interlock
4. Others Option: Sterilizer, buzzer alarm, interphone, microcomputer operation panel, conveyor

3. Standard Model Technology Parameter
