DUALRAYS LED Stadium Floodlights 160LPW 500W With Meanwell Driver

Price Negotiable
Price: Negotiated
MOQ: 1pcs
Delivery Time: 5-15 Bussiness Day
Brand: DUALRAYS
Product Description

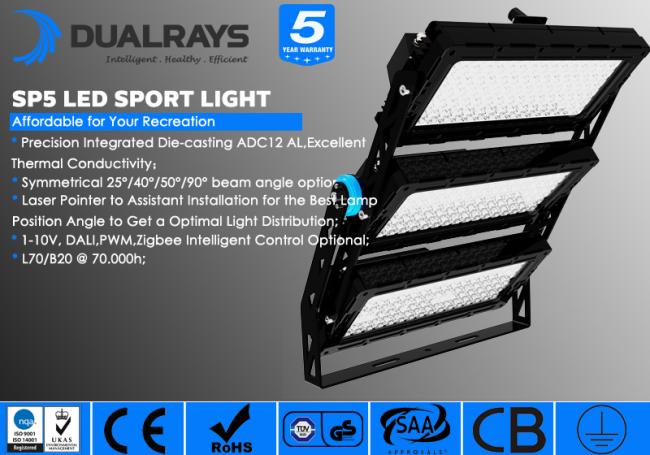

DUALRAYS 500W SP5 Series Meanwell Driver Sport Light for Stadium Sport Filed


Options:
> Driver: Meanwell ELG/HLG driver;
> Controls and Dimming: 1-10V, DALI,PWM,Zigbee for Option;
> Surge Protection Device: Meanwell SPD-20 20KV Surge Protector;
> Lens : Symmetrical 20°/30°/60°/90°,Asymmetrical 140*60° optics optional;
> Aiming Device: Laser Pointer;

> Logistics areas (Ports)
> Stadiums and Racing tracks
> Public squares
> Apron lighting (Airports), Parking and Industrial areas
> Recreational sports lighting applications (Football, Hockey, Basketball, Golf,Tennis, etc)

Model No.
DR-SPL500-EGXP
System Watts/W
500W
System Efficiency/LPW
150~160LPW
Lumen Output/lm
60.000±5%
Rated Input Voltage/V
AC100~277V, 50/60Hz
LEDs Light Source
SMD5050
SDCM
<5
CCT/K
5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra
>70Ra (>80Ra for Option)
Power Factor
>0.95
THD
<10%
Beam Angle(Optional)
20°/30°/60°/90°/140*60° Optional
UGR
<25
Surge Protection
4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver
Meanwell ELG/HLG
IP Rating
IP65
Dimming(Optional)
1-10V, DALI,PWM,Zigbee for Option
Safety Protection Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Start Time 0.5s
Protection Class
ClassⅠ
Finishing Color(Optional)
Black RAL9017(Standard) / White RAL9016 Optional
Material
Aluminum+PC
Lifespan/hrs
70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃
40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃
- 40°C to + 65°C(-40°F to 149°F)
Switching Cycles 100,000 Times
Certificate
CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available


















Dualrays 50W Aluminium Housing LED Flood Light IP66 Waterproof With Adjustable Beam Angle
Q1: What is the Lead time?

RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.



Q2: Is there cheap shipping cost to import to our country?
RE: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent
orders,we suggest via air to airport plus our ship partner send to your door.

Q3: Can you do DIAlux Simulation?
RE: We have professional DIAlux team to support you, IES files also can be downloaded on our Website.



Q4:Can we get support if we have our own market position?

RE: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
