1000ppr 24V 0.0625Nm 26W 1.8A Brushless DC Motor With Encoder
Price:
US $20 - 45 / Pieces
MOQ:
3-10pcs
Delivery Time:
For samples , 7-15 days / For batch , 15-25days
Brand:
Jkongmotor
Product Description
24V 4000RPM 0.0625Nm 26W 1.8A 42x42x41mm Brushless DC Motor with encoder 1000ppr
Product Description Of High Performance Brushless Dc Motor:
| Model | |||||
| Specification | Unit | JK42BLS01 | JK42BLS02 | JK42BLS03 | JK42BLS04 |
| Number Of Phase | Phase | 3 | |||
| Number Of Poles | Poles | 8 | |||
| Rated Voltage | VDC | 24 | |||
| Rated Speed | Rpm | 4000 | |||
| Rated Torque | N.m | 0.0625 | 0.125 | 0.185 | 0.25 |
| Rated Current | Amps | 1.8 | 3.3 | 4.8 | 6.3 |
| Rated Power | W | 26 | 52.5 | 77.5 | 105 |
| Peak Torque | N.m | 0.19 | 0.38 | 0.56 | 0.75 |
| Peak Current | Amps | 5.4 | 10.6 | 15.5 | 20 |
| Back E.M.F | V/Krpm | 4.1 | 4.2 | 4.3 | 4.3 |
| Torque Constant | N.m/A | 0.039 | 0.04 | 0.041 | 0.041 |
| Rotor Inertia | g.c㎡ | 24 | 48 | 72 | 96 |
| Body Length | mm | 41 | 61 | 81 | 100 |
| Weight | Kg | 0.3 | 0.45 | 0.65 | 0.8 |
| Sensor | Honeywell | ||||
| Insulation Class | B | ||||
| Degree of Protection | IP30 | ||||
| Storage Temperature | -25～+70℃ | ||||
| Operating Temperature | -15～+50℃ | ||||
| Working Humidity | 85% or under 85% RH(non condensing) | ||||
| Working Environment | outdoor(no direct sunlight),Non-corrosive Gas, Non-inflammable gas, No oil fog, No dust |
||||
| Altitude | 1000m or under 1000m | ||||
Note: We can also customized products according to customer's special request.
Dimensions of brushless dc motor with encoder :
(Unit=mm)
(Unit=mm)

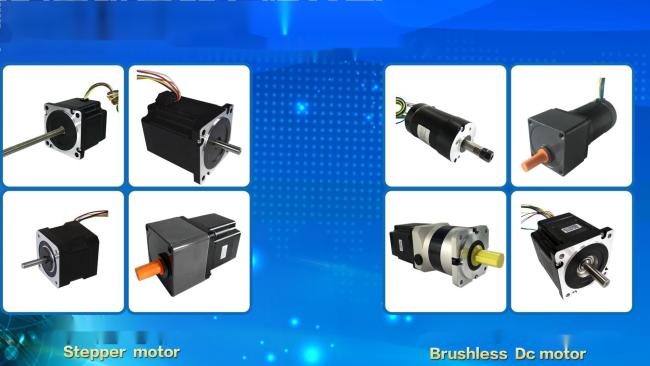

Related products
Can you have a brushless DC motor?
Brushless DC motors offer long life and ease of maintenance
DC motors can be further divided into brushed DC motors and brushless DC motors, depending on whether they have brushes (electrodes). These motors work by means of the mechanical linkage between their commutator and brushes.
How long can a brushless motor run continuously?
Operating Life:
Brushed motor life is limited by the brush type and can attain 1,000 to 3,000 hours on average, while brushless motors can attain tens of thousands of hours on average, as there are no brushes to wear. The limiting factor is the wear on the bearings.
