20mm micro Nema 8 Bipolar Stepper Motor 300g.cm 0.8A

A hybrid stepper motor has an axially magnetized rotor, meaning one end is magnetized as a north pole, and the other end a south pole. Toothed rotor cups are placed on each end of the magnet, and the cups are offset by half of a tooth pitch.

1.Genaral Specification:

2.Electrical Specification:

Matching Stepper motor Driver: JK0220

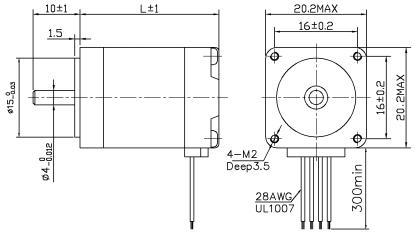

3.Dimensions: (Unit=mm)

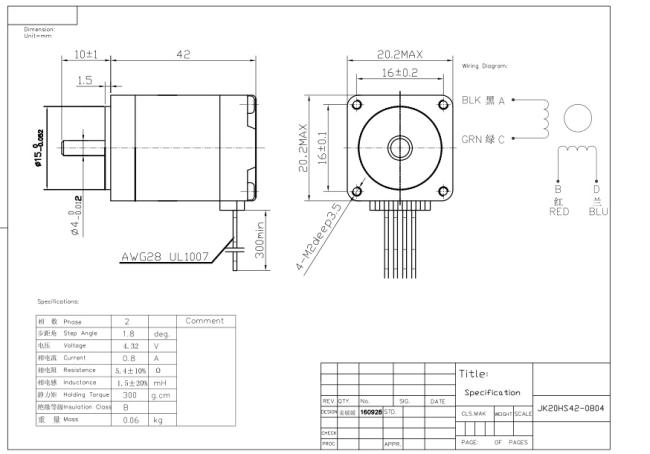

4.Drawing:

5.Our service

We do also manufacture other products,such as

Nema8 , nema11 , nema14 , nema17 , nema23 , nema24 , nema34 , nema42 , nema52 stepper motor;

Nema11 , nema17 , nema23 , nema24 , nema34 stepper motor with gearbox.

Linear stepper motor , closed loop stepper motor , stepper motor with brake , stepper motor sriver;

42mm , 57mm , 60mm , 80mm , 86mm , 110mm ,  130mm brushless dc motor;

Bldc motor with gearbox , bldc motor driver;

Brush dc motor , spindle motor , ac servo motor kit , couplings , pulley , power supply and so on.

6.Advantages of Hybrid Stepper Motor

The advantages of the Hybrid Stepper Motor are as follows:-

• Low cost for control achieved
• High torque at startup and low speeds
• Ruggedness
• Simplicity of construction
• Can operate in an open loop control system
• Low maintenance
• Less likely to stall or slip
• Will work in any environment
• Can be used in robotics in a wide scale.
• High reliability
• The rotation angle of the motor is proportional to the input pulse.
• The motor has full torque at standstill (if the windings are energized)
• Precise positioning and repeatability of movement since good stepper motors have an accuracy of 3–5% of a step and this error is non-cumulative from one step to the next.
• Excellent response to starting/stopping/reversing.
• Very reliable since there are no contact brushes in the motor. Therefore, the life of the motor is simply dependent on the life of the bearing.
• The motors response to digital input pulses provides open-loop control, making the motor simpler and less costly to control.
• It is possible to achieve very low-speed synchronous rotation with a load that is directly coupled to the shaft.
• A wide range of rotational speeds can be realized as the speed is proportional to the frequency of the input pulses.
•

Applications

As the stepper motor are digitally controlled using an input pulse, they are suitable for use with computer controlled systems.

They are used in numeric control of machine tools.

Used in tape drives, floppy disc drives, printers and electric watches.

The stepper motor also use in X-Y plotter and robotics.

It has wide application in textile industries and integrated circuit fabrications.

The other applications of the Stepper Motor are in spacecrafts launched for scientific explorations of the planets etc.

These motors also find a variety of commercial, medical and military applications and also used in the production of science fiction movies.

Stepper motors of microwatts are used in the wrist watches.

In the machine tool, the stepper motors with ratings of several tens of kilowatts is used.
