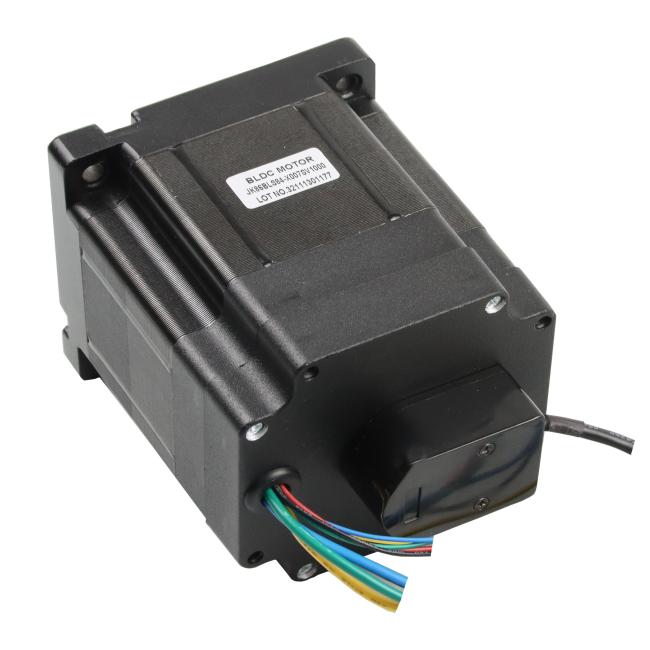

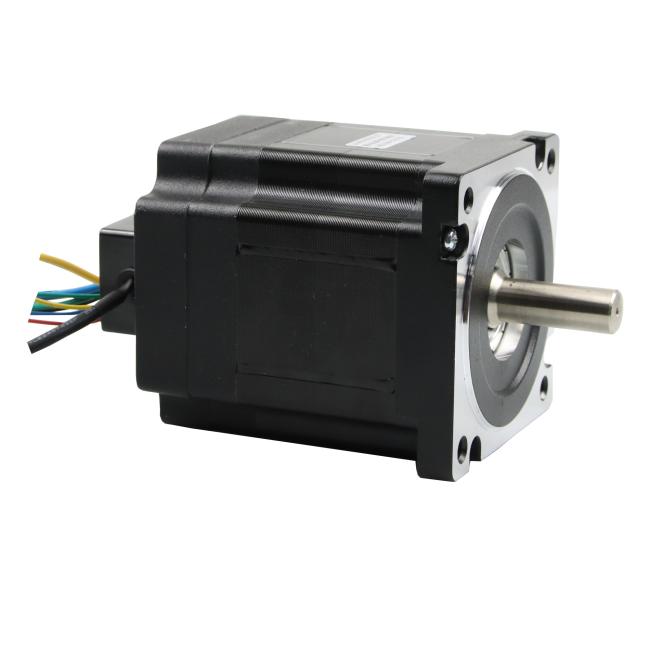

48V 3000rpm 330W 86mm Waterproof BLDC Motor Three Phase With 1000ppr Encoder

Price Negotiable

Price: US $20.8 - 40 / Pieces | 1 Piece/Pieces (Min. Order)

MOQ: 3-10pcs

Delivery Time: For samples , 7-15 days / For batch , 15-25days

Brand: Jkongmotor

Product Description

48V 3000rpm 330W 86mm BLDC Motor with 1000ppr encoder Brushless DC Motors

Product Name: Brushless DC Motor
Number of Phase: 3 Phase
Number of Poles: 4 Poles /8 Poles /10 Poles
Rated Voltage: 24v /36v /48v /310v
Rated Speed: 3000rpm /4000rpm /or customized
Rated Torque: Customized
Rated Current: Customized
Rated Power: 23w~2500W

Electrical Specification of brushless dc motor:

Product Series	Poles No.	Rated Voltage	Rated Speed	Rated Torque	Rated Power	Motor Length
42mm BLDC Motor	8	24v	4000rpm	0.0625~0.25N.m	26~105w	41~100mm
57mm BLDC Motor	4	36v	4000rpm	0.055~0.44N.m	23~184w	37~107mm
60mm BLDC Motor	8	48v	3000rpm	0.3~1.2N.m	94~377w	78~120mm
80mm BLDC Motor	4	48v	3000rpm	0.35~1.4N.m	110~440w	78~138mm
86mm BLDC Motor	8	48v	3000rpm	0.35~2.1N.m	110~660w	71~138.5mm
110mm BLDC Motor	8	310v	3000rpm	1.65~6.6N.m	518~2073w	83~173mm
130mm BLDC Motor	10	310v	3000rpm	2.39~11.94N.m	750~2500w	115~190mm
Above only for representative products, products of special request can be made according to the customer request.

Electrical Specification of round 48V brushless dc motor:

		Model
Specification	Unit	JK86BLS58	JK86BLS71	JK86BLS84	JK86BLS98	JK86BLS125
Number Of Phase	Phase	3
Number Of Poles	Poles	8
Rated Voltage	VDC	48
Rated Speed	Rpm	3000
Rated Torque	N.m	0.35	0.7	1.05	1.4	2.1
Rated Current	Amps	3	6.3	9	11.5	18
Rated Power	W	110	220	330	440	660
Peak Torque	N.m	1.05	2.1	3.15	4.2	6.3
Peak Current	Amps	9	19	27	35	54
Back E.M.F	V/Krpm	13.7	13	13.5	13.7	13.5
Torque Constant	N.m/A	0.13	0.12	0.13	0.13	0.13
Rotor Inertia	g.c㎡	400	800	1200	1600	2400
Body Length	mm	71	84.5	98	111.5	138.5
Weight	Kg	1.5	1.9	2.3	2.7	4
Sensor	Honeywell
Insulation Class	B
Degree of Protection	IP30
Storage Temperature	-25～+70℃
Operating Temperature	-15～+50℃
Working Humidity	85% or under 85% RH(non condensing)
Working Environment	outdoor(no direct sunlight),Non-corrosive Gas, Non-inflammable gas, No oil fog, No dust
Altitude	1000m or under 1000m

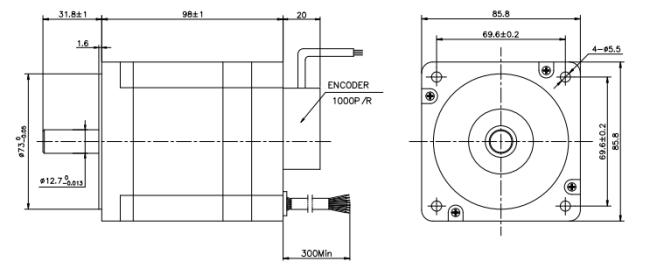

Drawing of 48VDC square DC motor:

Our Services

We aslo supply Stepper motor Kits, linear stepper motor, Dc motor, Brake stepper motor, Stepper motor with Encoder, Flexible Coupling, Pully, Power supply, Breakout Board and so on..
