XY-1A Diesel Soil Test Drilling Machine 150m Depth 42mm Pipe
XY-1A Soil Test Drilling Machine
Product Introdution

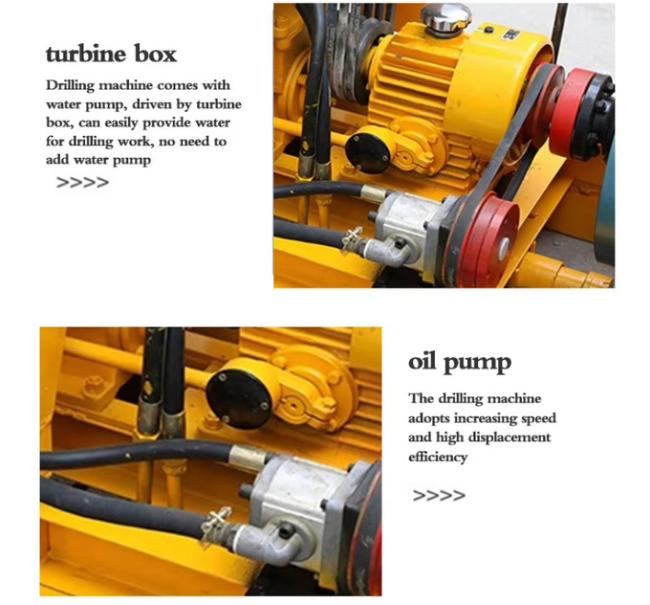

Xy-1a drilling rig is a high-speed portable drilling rig with oil pressure feed. In order to make the machine more widely applicable and meet the needs of different users,The drilling rig, water pump and diesel engine are installed on the same base,it is an advanced, robust, and efficient piece of equipment designed for a variety of soil testing applications. This drilling rig is engineered to provide precise and reliable core samples, making it an essential tool for geotechnical engineers, environmental consultants, and construction professionals who are involved in the assessment and analysis of soil properties for various projects. With a drilling hole diameter capability of 100mm, this machine is well-suited for obtaining clear and uncontaminated soil samples, ensuring accurate testing results.
Product Tech Data
| Video outgoing-inspection | Provided |
| Machine Type | Drilling Equipment |
| Usage | water well drilling |
| Name | Core drill rig |
| MOQ | 1 pcs |
| Local Service Location | None |
| After-sales Service Provided | Video technical support |
| Drilling angle | 90 °~75 ° |

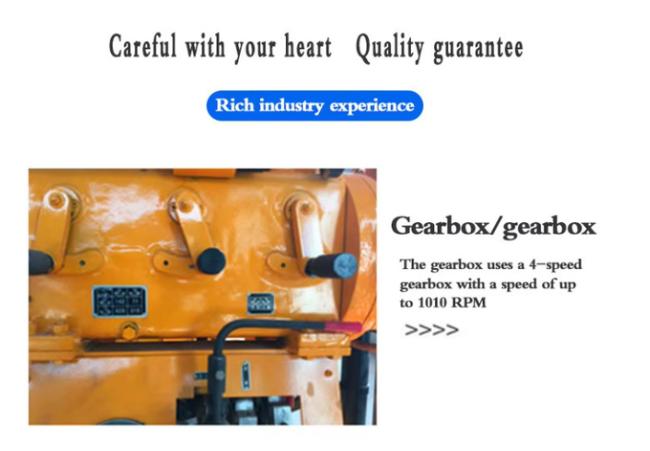

| Spindle speed | 17, 35, 75, 151r/min |
| Tightrope caliber | 12.5mm |
| Tightrope cubic measure | 35mm |
Product Advantage
1. It has an oil pressure feeding mechanism, which improves the drilling efficiency and reduces the labor intensity of workers.
2. The drilling rig is equipped with upper ball clamp clamping mechanism and hexagonal active drill pipe, which can reverse the rod without stopping, with high work efficiency, safety and reliability.
3. It is equipped with a hole bottom pressure gauge to indicate the pressure, so as to master the situation in the hole.
4. The handle is centralized and easy to operate.
5. The drilling rig has compact structure, small volume, light weight, easy disassembly and handling, and is suitable for working in plain and mountainous areas.
Product Main Applications
1. The drilling rig is applicable to the general survey and exploration of solid deposits, engineering geological survey and other boreholes, as well as various concrete structure inspection holes.
2. According to different geological structures, diamond, alloy and steel bits can be selected for drilling.
3. When the final hole is 75mm and 46mm respectively, the rated drilling depth is 100m and 180m respectively. The maximum depth shall not exceed 110% of each drilling depth, and the allowable opening diameter is 150mm.
