ST200 Water Well Drilling Rig Machine With Diesel Engine For Drilling 200m
ST200 Water Well Drilling Rig Machine With Diesel Engine For Drilling 200m

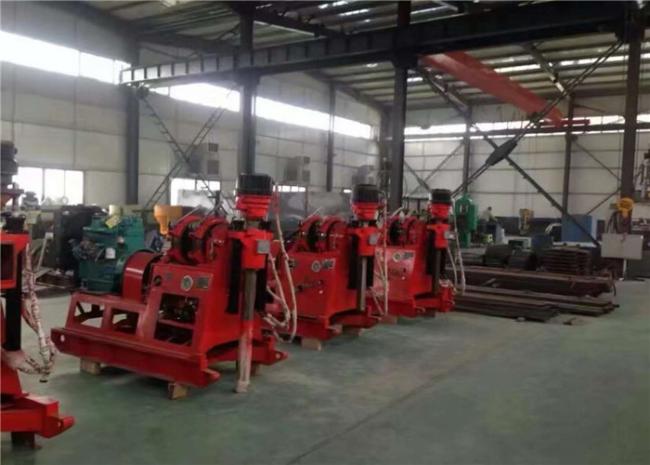

ST-200 drilling rig machine is one model that can move freely .It is widely used in many areas . It equip with hydraulic feeding equipment,have the character of large power, large lifting force and high transmission torque.
1.Can used in the Engineering geological investigation for railways, traffic, bridges, dam foundations and other buildings.
2 Physical prospecting and geological core drilling
3 Small grout Confucius, drill hole drilling.
Features of water well drilling rig
1.Adopt automatic hydraulic feeding equipment,improve the drilling efficient
2.Can replace the drilling rod without stop
3.Centralized handles, easy operation, safe and reliable.
4.The drilling rig, pump and diesel engine are installed on a common base frame to make sure the compact structure and save space
5.The weight is light with high detachability ,easy transportation suit for the operate in plains and mountain areas
Technical Specification
|
Drilling depth |
200m |
|
|
Maximum open hole caliber |
300mm |
|
|
End hole caliber |
75mm |
|
|
Drill rod caliber |
60mm |
|
|
Drilling angle |
90°~75° |
|
|
Drill weight (No include power) |
975kg |
|
|
Unity machine dimensions |
1433×697×1273m |
|
|
Spindle |
||
|
spindle speed |
64 128 287 557r/min |
|
|
Spindle stroke |
450mm |
|
|
Winch |
||
|
Max.single line hoisting capacity |
2400kg |
|
|
Single line lifting speed |
0.41,0.82,1.64m/s |
|
|
steel wire rope caliber |
13m(35m) |
|
|
Mud pump |
||
|
Type |
Horizontal single urn twin-action |
|
|
Displacement |
170/150L/min(diesel or electromotor) |
|
|
Diesle engine |
ZS1115 16.2kw 2200r/min |
|
|
Electric motor |
Y160M—4 11kw 1440r/min |
|
