Diesel Engineering Water Well Drilling Rig For Geological Coring 380V
Made in China Engineering Water Well Drilling Rig for Geological Coring
Product Description:
1. Used for general investigation, geophysical exploration, highway and building construction, and blast-hole drilling etc.
2. With hydro-automatic feeding device, and high drilling efficiency.
3. Designed with hydrochucking unit instead of slips to ensure drilling from stop when changing pipes.
4. Close levers, convenient to operate, safe and reliable operations.

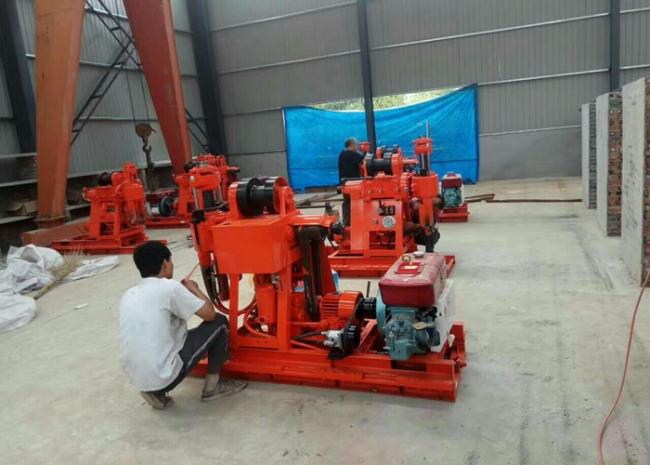

5. Compact in structure. All the drill, water pump and diesel engine installed on one base frame result in space-saving.
6. Light in weight, easy disassembling for transportation and applicable to working conditions in plain and mountain areas.
Product Parameter:
| Main technical parameters | Pump | ||||
| Drilling depth(m) | 100m | Type | Gear pumps | ||
| Hole diameter | 110mm | Model | YBC-12/80 | ||
| The final hole diameter | 75mm |
Rated pressure
|
8Mpa | ||
| Rod diameter | 42-50mm |
Flow
|
8ml/r | ||
| Borehole inclination | 90°— 75° |
Rated speed
|
1500r/min | ||
|
Rig Dimensions (L×B×H) |
1640mm×1030mm×1440mm | ||||
|
Rig weight(Except the power machine ) |
500kg | Motor and diesel | |||
| Gyrator | type | ZSⅡ00 | |||
| vertical speed | 142,285,570r/min | Rated Power | 11KW | ||
| vertical stroke | 450mm | Rated speed | 2200r/min | ||
|
vertical load up the maximum speed
|
3m/min | Electric motor | |||
| vertical load down the maximum speed | 4m/min | type | Y160M-4 | ||
| The maximum vertical force feed | 15KN | Rated Power | 11KW | ||
| The maximum vertical lifting force | 25KN | Rated speed | 1460r/min | ||
| Pump | |||||
| Winches |
Type
|
Horizontal single-cylinder double-acting
|
|||
|
The maximum lifting capacity ( a single rope speed )
|
10KN |
The maximum displacement
|
99(77)L/min | ||
|
Reel speed
|
55,110,220r/min |
The maximum allowable pressure
|
1.2Mpa | ||
| Roll peripheral speed | 0.42,0..84,1.68m/s | Working Pressure | 0.7Mpa | ||
| Reel diameter | 145mm | The number of strokes | 120(96)min | ||
| Rope diameter | 9.3mm | Liner diameter | 80mm | ||
| Rope capacity | 27m | Piston stroke | 100mm | ||
| Brake diameter | 230mm | ||||
| Gate width | 50mm | ||||
