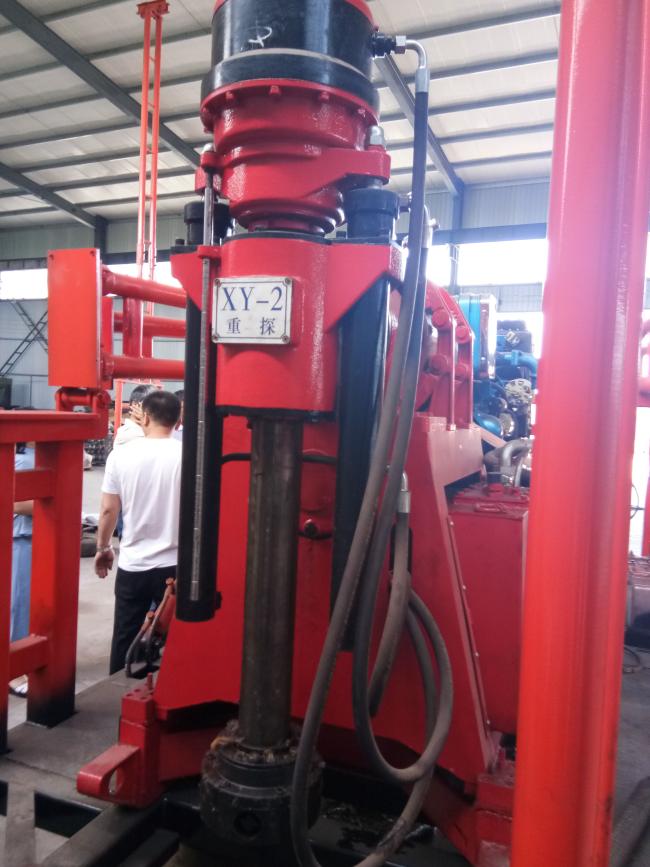

Crawler Mounted XY-2 Borehole Drilling Machine Diesel Power Type
Product Description:
Keeping bracket is installed on the hoist to form a double wheel support structure, can withstand strong blow.
Vertical box four couple of bearings positioned to ensure the rotary machine has a sufficient rigid response to gravel layer ,the complex geological conditions.
This machine adopts national patent technology taper clutch, with characteristics of strong transmission torque, easy to operation, free to maintenance.
53x59 driving lever is adopted, high rigidity, strong delivery torque.
Product Parameter:
| 1.Unity Machine Parameter | |
| Drilling Depth(m) | 150~200m |
| Hole Diameter(mm) | 75~200mm |
| Drill Rod Diameter | 50 |
| Drilling Angle | 90~75 |
| Drill Weight (No include power) | 910kg |
| Overall Dimession | 2750*950*1600mm |
| 2.Spindle | |
| Spindle Speed | 64, 128, 287, 557r/min |
| Spindle Stroke | 450mm |
| 3.Hoist | |
| Max. Single Line Hoisting Capacity | 2000kg |
| Reel Lifting Speed | 75, 151rm/s |
| Tightrope Diameter | 13mm |
| Tightrope Cubic Measure | 35mm |
| Hug Follgate Belt Width | 70mm |
| Distance Between Drill and Hole | 400mm |
