Deep Borehole Rig Water Well Drilling Dth Rotary Irrigation Underground

Price Negotiable
Price: Marketable
MOQ: 1 Set
Delivery Time: 5-7 days after payment
Brand: SHITAN
Product Description

Deep Borehole Dth Rotary Irrigation Underground Water Well Drilling Rig Machine

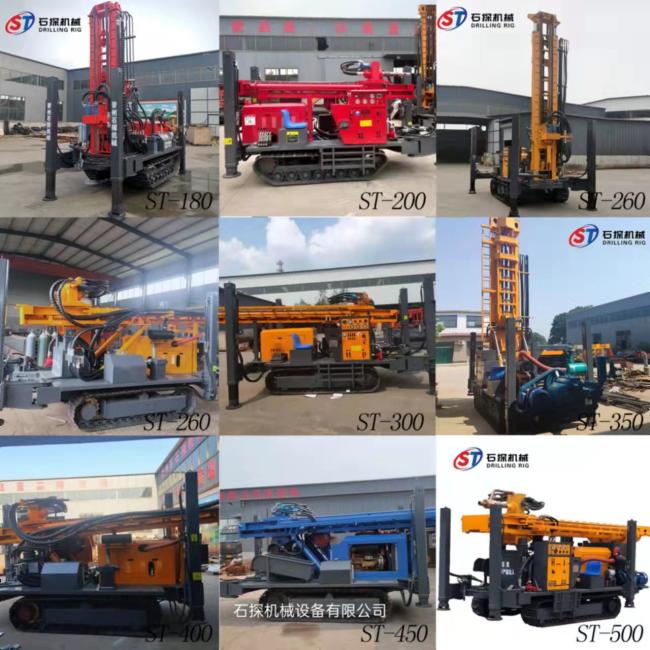

ST 350 Water Well Drill Rig Introduction



The drill machine adopts new hydraulic technology,multi-functional water well drilling rig is a moveable, efficient and multipurpose rock drilling equipment. It has rotary drilling mode and percussive drilling mode with high-pressure air, foam and mud according to different geological conditions



ST 350 Water Well Drill Rig Techs


Technical Parameters
type ST350
The weight 9.8T
Dimension

6m×2m×2.5m

The hole diameter

105-305mm

Drilling depth 350m
One-time advance length 6m
Walking speed 2.5KM/H
Climbing angles 30
Power 92KW
Using air pressure 1.7-3.3MPA
Air consumption 17-35
Drill pipe length 1.5m 2.0m 3.0m 6.0m
Drill pipe diameter 89mm,102mm,
Rig lifting force 20T
Swing speed 55-115rpm
Swing torque 6200-85000N.m


ST 350 Water Well Drill Rig Features

1.High drilling efficiency, power provided by 60KW Yunnei diesel engine
2.High efficiency(20M~40M/Hour), large rotary torque(6000-6500N.m)
3.Integrated automation equipment,All terrain moves by itself
4.Adopt consummate design, long service life
5.Self loading and unloading,easy to operating.

FAQ OF ST 350 Water Well Drill Rig

1. What are the delivery times?

The specific delivery time depends on the items and quantity of your order.
2. Do you have a MOQ limit?
Yes it depends on the products size and production process.
3. What are your payment methods?
T/T,Western Unions payments are available.
4. What after-sales service can you provide?
It has developed a whole-process and all-round after-sales service system, including equipment installation and debugging, maintenance, testing, operation training and spare parts supply.



How deep can you drill your own well?



Drilling a Water Well for household use will usually range from about 100 feet to 500 feet deep, but... When drilling a new well for your home or business, the depth of the well depends on the geology and underground water levels of the area
