Metal Plate Gantry Type Cnc Plasma Cutting Machine
Gantry type CNC plasma cutting machine price for easy metal plate and tube cutting .
Product Details
Gear rack
The rack and pinion combined with double cylinder axis guide rail deliver you high precision motion and high quality cutting edge, which will enhance your competitive power in your market place.

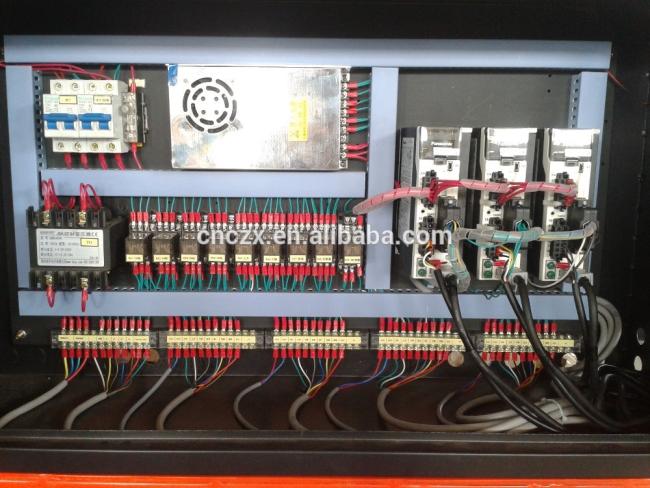

Electric cabinet
The enclosed control cabinet is easily accessible. The digital drives, low-cost replacement I/O modules and more reduce and limit your repaire and maintenance costs.

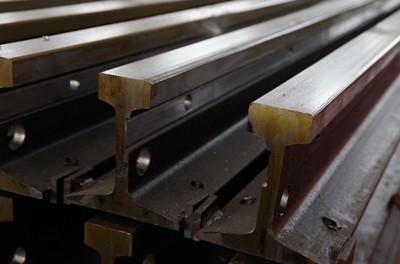

Floor mounted rails
Rugged floor mounted rails machined from 24kg/m crane rail for smooth motion required by today's high performance plasma and flame torches.

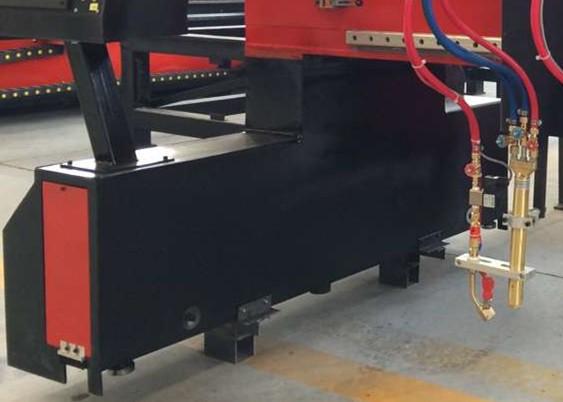

Heavy-duty end trucks
The heavy-duty end trucks can support the steel dual cross beam and offer you rugged gantry structure ready to carry the cutting processes while offering you excellent part quality.
Product Parameter
Gantry type CNC plasma cutting machine price for easy metal plate and tube cutting .
|
Technical item
|
Technical parameters
|
|
Effective cutting width
|
2000mm - 5500mm
|
|
Effective cutting length
|
4000mm - 20000mm
|
|
Tailor-made dimension
|
Accept tailor-made order
|
|
Flame piercing thickness
|
6mm -80mm
|
|
Edge cutting thickness
|
6mm -200mm for flame cutting
|
|
Plasma cutting thickness
|
1-45mm for plasma cutting
|
|
Torch lifter vertical traveling distance
|
≤150mm
|
|
Cutting precision
|
±0.5mm
|
|
Cutting speed
|
100-12000mm/min for plasma cutting
50-600mm/min for flame cutting process
|
|
Number of lifter
|
Double (standard), accept tailor-made order
|
|
Cutting process
|
Plasma cutting and flame cutting
|
|
Torch lifting device
|
flame capacitance adjustment / plasma arc pressure adjustment
|
|
duty cycle
|
24h
|
|
processing material
|
Mild steel , stainless steel and aluminum
|
Trust us!
Pre-sale service : Call us no matter cooperate or not. you may get unexpected surprise. We will devote ourselves into knowing clients specific needs and requirements to suggest them the most suitable machine with best price,
Selling service : Patiently and thoughtfully answer all of ur concers, and provide you most valuable suggestion to gurantee our clients to get the most benifit from our cooperation
After sale service 24 hours technician online for your questions . Latest software is always available.Traning videos and CD in english will help clients better use machines easily. 12 months warranty for free for all parts broken under non human factors. After warranty we can renewal our contract, so that u can enjoy our same warranty service for the whole life of machine.
