CNC pipe profile and plate cutting machine 1500x6000mm 220V
Product Description

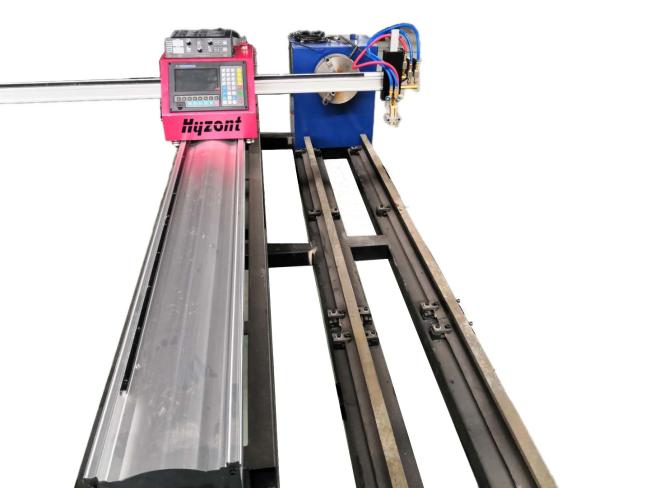

Portable CNC Plasma Cutting Machine for Plate and Pipe 1530/1560
1. The transverse effective cutting is 1500mmx3000mm, It adopts aluminum alloy guide rail and single side drive.
2. It can be equipped with flame and plasma cutting torch automatic elevation system according to user's requirements.
3.Its main function features include: the control system adopts industrial computer, which can accept the import of external processing program, and timely graphic tracking when cutting.
Technical Parameters
Portable CNC Plasma Cutting Machine for Plate and Pipe
1500*3000/1500*6000mm
| No. | Items | Parameters |
|
1
|
Machine Voltage | Singal phase220V,50HZ |
| Plasma power Voltage | Three Phase 380V,50HZ | |
| 2 | Cutting mode | Plasma+Flame |
| 3 | Effective cutting range(mm) | 1500mm×3000mm or 1500mm×6000mm |
| 4 | Cutting speed(mm/min) | 50-3500mm/min |
| 5 | Plasma power |
Huayuan LGK-100A 120A/200A/300A or Hyperthem 80A/105A/125A |
| 6 | Plasma cutting thickness | According to power source models |
| 7 | Moving precision | ±0.2mm/m |
| 8 | Cutting system | Fangling F2100X |
| 9 | THC | Fangling F1620 |
| 10 | Software | Starcam |
| 11 | Total weight(kg) | 126KGS |
| 12 | Emergency stop | Yes |
| 13 | Working temperature | -5~45℃ |
| 14 | Relative humidity | <95% No condensing |
Portable CNC Flame Plasma Cutting Machine Cheap CNC Plasma Cutting Machine
