P4.8 Performance Stage Rental LED Display With 500X500mm Cabinet Compatibility
P4.8 Indoor Stage Rental LED Display 500X500mm Cabinet Compatibility Lightweight and Seamless
Product Feature
1 Integrated design: power and receiver card integrated in the control panel, no signal cable between the module and the power line, greatly improving the stability and reliability;
2 Stable circuit control technology, simple operation, easy maintenance;
3 Unique die-cast aluminum box structure, stable, durable, lightweight;
4 very "light, thin, dense" feature, in order to provide a greater realization of creative space;
5 accurate, fast and flexible installation location, can effectively respond to different application areas;
6 Deep gray scale processing technology, high-quality screen refresh, and create fantastic stage effects;
7 Easy maintenance: with power and signal work status self-check function, real-time display each product's power and signal work status, when a product does not display screen, to help you quickly determine the problem quickly and make the appropriate repair measures;
Application

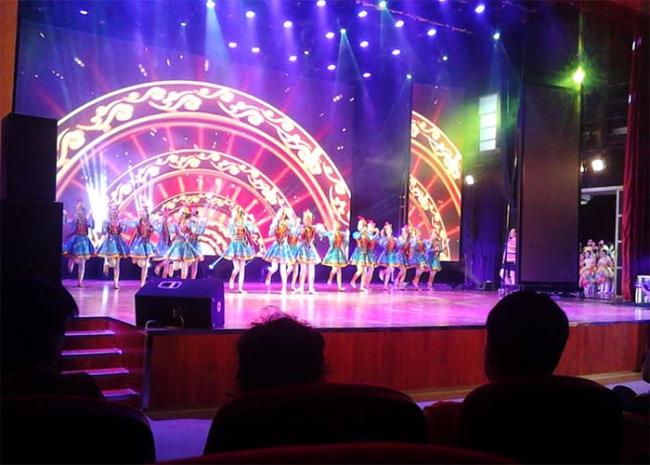

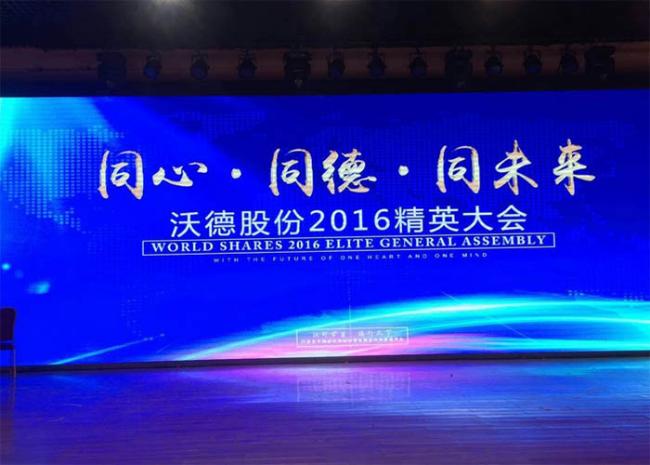

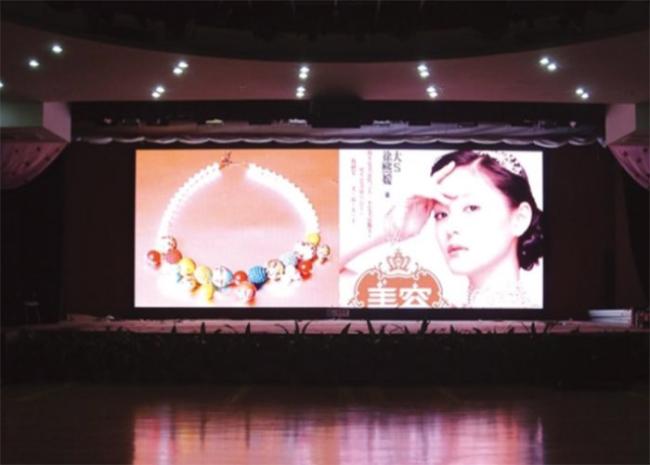

Indoor stage, TV studio, concert, theme park and exhibition where need quick installation and HD video.
Specification
| Model | IRA-4.8 |
| Pixel Pitch | 4.81mm |
| Pixel Density | 43264 pixels/m2 |
| LED Type | SMD2121 |
| LED Configuration | 1R1G1B |
| Cabinet Dimension | 500*500mm/500*1000mm |
| Cabinet Resolution | 104*104px/104*208px |
| Cabinet Weight | 8kg(13kg) |
| Cabinet Material | die casting aluminum |
| Ingress Protection(front/rear) | IP40/IP21 |
| Brightness | >1200nits |
| Viewing Angle(H/V) | 140°/140° |
| Driving Method | 1/13 Scan |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | >1500Hz |
| Gray Scale | 16bit |
| Power Consumption(avg.) | 320w/m2 |
| Input Voltage | AC 110/220±10%/50~60Hz |
| Temperature(operating/storage) | -20~50°C / -40~60°C |
| Humidity(operating/storage) | 10%~90%RH / 10%~85%RH |
| MTBF | ≥1000hrs |
| Life Span | ≥50000hrs |
| Pixel Failure | <0.0003 |
