Light weight P10.4 Transparent led screen with 100x50cm Panel
Light weight P10.4 Transparent led screen with 100x50cm Panel
P10.4 Transparent led screen Parameter
| BG-10 | |
| Physical Pitch | 10.4x10.4mm |
| Pixel Configuration | SMD1921 |
| Pixel Density | 9216pixels/m² |
| Module Dimensions (WxH)(mm) | 500x125 |
| Panel Dimensions (WxH)(mm) | 1000x500 |
| NO. of Modules Per Panel(WxH) | 2x4 |
| Physical Resolution of Module(WxH) | 48x12 |
| Physical Resolution of Panel(WxH) | 96x48 |
| Panel Material | Aluminum |
| Single Cabinet Weight | <14kg/m² |
| Gray Scale | 16bit |
| Colours | 281 trillion |
| Contrast Ratio | 2000:01:00 |
| Average Power Consumption | 140W/m² |
| Max. Power Consumption | 400W/m² |
| Operating Temp/Humidity | -10ºC-60ºC/ 10%-60% |
| Storage Temp/Humidity | -30ºC-60ºC/ 10%-60% |
| Refresh Rate | >1920Hz |
| Brightness | 1000~4200 nits |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing Angle | 140° |
| Expected Lifetime | 100,000Hrs |
| IP Rating(Front/Rear) | IP30 |
| Servicing | Rear |
| Scan Method | 1/2 or 1/4 Scan |
P10.4 Transparent led screen Description
Advertsing Indoor Fixed Clear Led Screen , Transparent Led Wall Nationstar Light

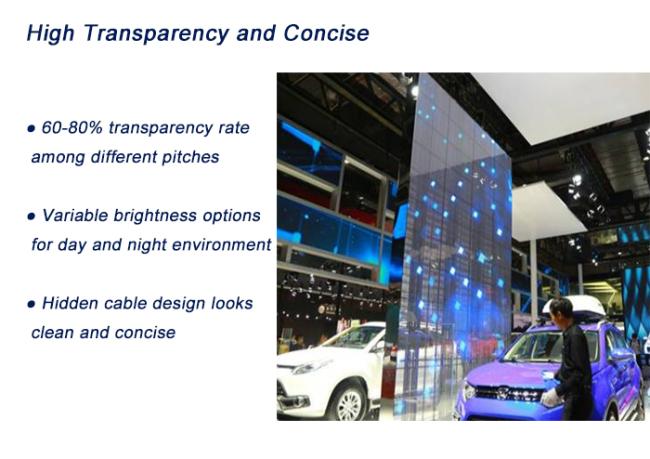

. High Transparency
. Easy to install and dismantle
. Excellent view angle
. Hidden cable appearance
P10.4 Transparent led screen Parameters:
Cases:
Company Introduction:
LED Vision Technology Limited , started in Shenzhen in 2005,a world class manufacturer of
technologically advanced LED displays,it is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION product lines have include I/O rantal,I/O fixed, UHD fine pitch, transparent screen,advertising poster,foldable screen… meanwhile, based on our experienced R&D team,and comprehensive management , we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
FAQ
Q1:How to choose a proper led screen for your need?
A:You just need to think of 3 simple questions when you choose a led screen by yourself.
1.Will you use it indoor or outdoor?
2.Is it for rental use(need to be moved from one place to another place very often) or for fixed installation(to be installed in one place forever)?
3.what is the appoximate size of the led screen you would like to purchase?
Q2:Which pixel pitch should i choose?
A:There are many different pixel pitch from 1.667--20,25,30mm, there is a roughly principle-usually small pixel(1.667mm-10mm) used for indoor led screen, bigger pixel (10mm-30mm) used for outdoor led screen(for example high way huge advertisement).
Q3:Which control system should i choose?
A:There is both synchronous and asynchronous control system for led screen on the market,for big size led screen(usually more than 20sqm) need to use synchronous control system,below 20sqm it's up to you to use syn or asyn.But asyn control system's refresh rate is much lower than sync control system and for asyn control system, you can choose to use wifi,3G,4G etc wireless control.
Q4:How to pay?
A:We accept L/C, T/T bank, or paypal or westerunion.
Q5:How to ship?
A:It is optional and we respect customer's choice. You can choose to ship by air cargo, by internation express company, or by sea according to your goods weight and volume and the delivery time you need.
Q6:How to install it after i received it?
A:We will offer you the drawing to guide you for installation, we could also offer steel drawing, software set up drawing or photo or send our engineer fly to you for help if needed.
