Full Color HD Space Saving 360° Foldable Flexible LED Display with Fast Installation, Conventient Combination
LED Foldable Display Screen With Creative Design, Easy And Fast Installation

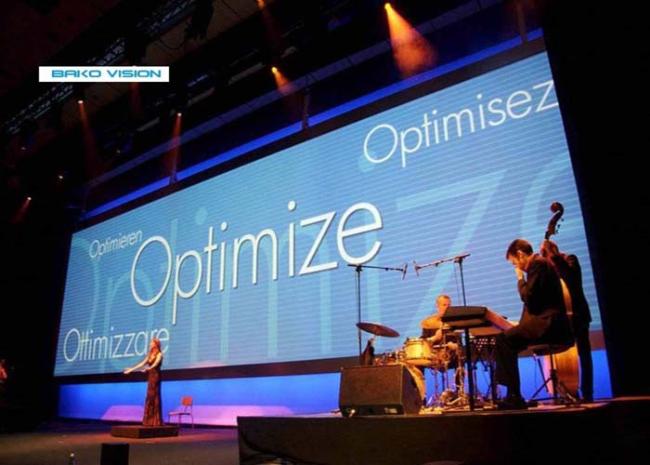

LED Foldable Display Screen With Creative Design, Easy And Fast Installation is a creative product with very light weight and easy installation. It's widely used in stage events, and it has high resolution and brightness and refresh rate.
LED Foldable Display Screen With Creative Design, Easy And Fast Installation Features
1.Ultra Thin & Light Weight
2.Conventient Installation & Combination

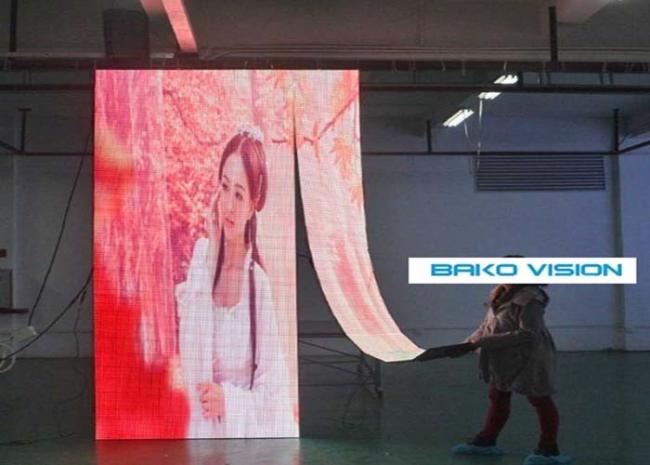

3.Extraordinary Flexibility
4.Maintenance way: Front service.
5.Application: Super market, Airport, hotel lobby, etc.
LED Foldable Display Screen With Creative Design, Easy And Fast Installation Parameters
| BF-6 | BF-7 | BF-10 | |
| Physical Pitch | 6 mm | 7.8 mm | 10 mm |
| Pixel Configuration | SMD 3528 | SMD 3528/3535 | SMD 3528 |
| Pixel Density | 27,556 pixels/m² | 16,384 pixels/m² | 10,000 pixels/m² |
| Unit Size (W*H)(mm) | 192*192 | 250*250 | 250*250 |
| Physical Resolution of Unit (H*V) | 32*32 | 32*32 | 16*16 |
| Weight (kg/m²) | <10 | <9 | <9 |
| Processing | 16 bit | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 2,000:1/4,000:1 | 2,000:1/4,000:1 | 2,000:1/4,000:1 |
| Average Power Consumption | 150/310 W/m² | 90/200 W/m² | 110 W/m² |
| Max Power Consumption | 375/775 W/m² | 225/500 W/m² | 275 W/m² |
| Brightness | 2,000/4,000 nits | 1,500/6,000 nits | 1,500 nits |
| Refresh Rate | >1,920 Hz | >1,920 Hz | >1,920 Hz |
| Foldable Angle | 360° | 360° | 360° |
| Max Length of Control Box | 6 m | 8 m | 4 m |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front | Front | Front |
| IP Rating (Front/Rear) | IP 43/54 | IP 43/54 | IP 43/54 |
| Certification | CE,ETL,CCC,FCC,TUV | CE,ETL,CCC,FCC,TUV | CE,ETL,CCC,FCC,TUV |
About us:
Shenzhen BAKO VISION Technology Co.,Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, is SHENZHEN BAKO LTD holding end professional customers among domestic and overseas markets.
Do not be hesitate to contact us if you have any quiry!
FAQ
Q1. Do you provide samples?is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q2.How to order?
A:Please send us your purchase order by Email or we can make you proforma invoice under your request.
We need to know the following information for your order before sending you PI.
1)Product information-Quantity,Specification(Size,Material,Technological if needed and Packing requirements etc.
2)Delivery time required.
3)Shipping information-Company name,Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if there's any in China.
Q3. Do you offer guarantee for the products?
A: Yes,we offer 2-5 years warranty to our products.
