SMD 3535 Outdoor Advertising Led Display Screen Billboard P10 Fixed Installation
Customized Outdoor P10 Fixed Installation Led Video Display Billboard For Advertising
Product Description:
2. Low consumption, stable performance, highly durable
3. High definition, high refresh rate 1,920Hz and 16bits gray scale, give you more colorful video and image.
4. Quick and accurate installation location type, suitable for many different installation environment
5. High screen flatness, location accuracy and seamless connection
6. Environmental adaptability, outdoor all-weather work, IP 65 waterproof.
Specifications
| BOF-10 | |
| Physical Pitch | 10mm |
| Pixel Configuration | SMD 3535 |
| Pixel Density | 10,000 pixels/m² |
| Module Dimensions(W*H)(mm) | 320*320 |
| Panel Dimensions(mm) | 1280*960*150 |
| NO. of Modules Per Panel (W*H) | 4*3 |
| Panel Material | Steel/ Aluminum |
| Colors | 281 trillion |
| Brightness | >6,500 nits |
| Weight (kg/m²) | 65/45 |
| Processing | 16 bit |
| Refresh Rate | >1920 Hz |
| IP Rating | IP65/ IP54 |
| Viewing Angle | V:160 degree H: 140 degree |
| Expected Lifetime | 100,000 Hrs |
| Operating Temp/Humidity | -20ºC-50ºC/ 10%-90% |
| Storage Temp/Humidity | -20ºC-50ºC/ 10%-90% |
| Physical Resolution of Module(W*H)(mm) | 32*32 |
| Physical Resolution of panel(W*H)(mm) | 128*96 |
| Avg./ Max. Power Consumption | 360/900W/ panel |
| Servicing | Front/Rear |
About Product
High Definition and clear image: High brightness and contrast make colors brilliant and bright, as well as stable and clear image.
Door lock design.

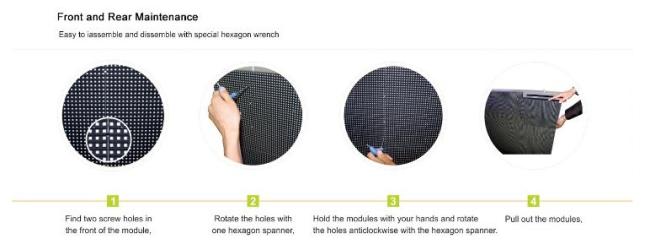

Front and Rear Maintence
1.Easy to assemble and dissemble with special hexagon wrench
2. All modules are cross color enhancing, and the edge compression is strong, not deformation, the flatness of display cabinet will be better
16 Bit High Gray Expression.
We use high quality led lamps with black led mask, making the video more clearly and colorful with the high contrast ratio 2000:1.

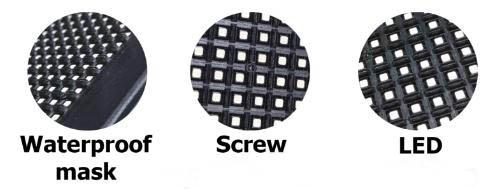

Waterproof mask
For 16:9 Aspect Ratio .Best view angle
Display brightness adjustable:According to changes in ambient light to adjust the brightness of the display (6500nit), to ensure that the human eye best viewing comfort and display while saving energy and environmental protection, greatly reducing your operating costs.

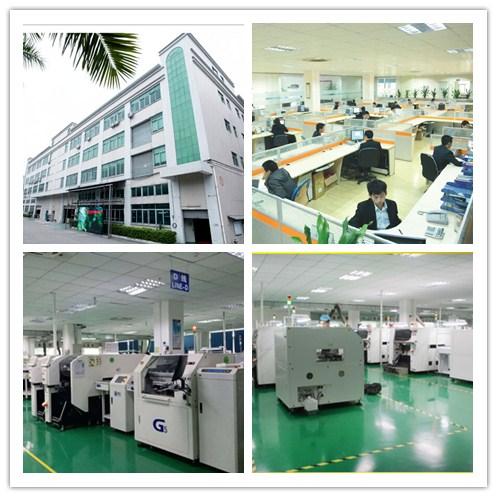

Production lines
Our company
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
Our Service
1) Reply your inquiry in 24 working hours.
2) Customized design is available,OEM & ODM are welcomed.
3) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
4) Special discount and protection of sales area provided to our distributor.
5) Warmly welcome your visit in our company if available.
6) . Warranty
(A) We provide warranty of all components for 24 months. During this time, we will replace or repair our goods for free if there is something wrong with them.
(B) We will provide maintenance for a lifetime and charge for the raw materials only.
7) Technology Training
(A) We provide the technology training for free, which contains the operation training and maintenance training in the factory.
(B) We will send our engineers to your country by negotiation.
