Curvilinear SMD2121 Indoor Rental LED Display HD Lightweight Panel For Stage

Price Negotiable
MOQ: Negotiation
Delivery Time: 25 Days
Brand: Bako Vision
Product Description



P3.91 Indoor Rental LED Display, Curvilinear SMD2121 HD Lightweight LED Panel For Stage



Rental LED Panel Description:

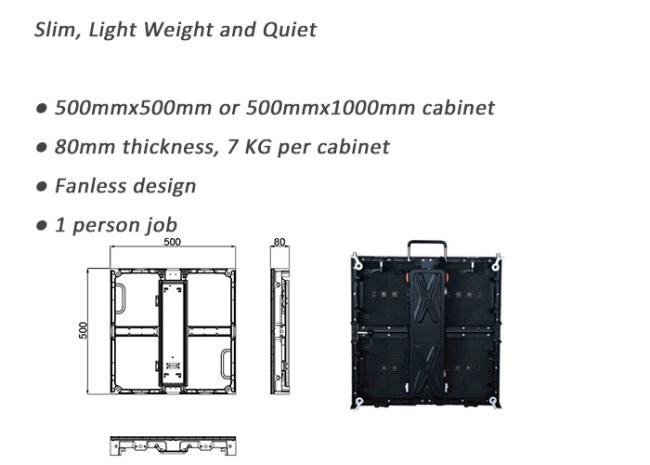

1.Assembled with die-casting aluminum, slim, thickness only 65 mm, super lightweight 7kg for unit cabinet of 500x500mm, fast lock, easy and quick to assemble and disassemble.



2.Scientifc cabinet size of 500x500 mm, 500 x 1000mm, can use together, and build any sizes freely according to the different needs of events.



3.The SMD (3-in-1) LED package provides wider viewing angles and extremely close viewing distances.



4.Professional used for indoor various events.



5.Advanced video processing produces crystal-clear,detailed images with smooth motion reproductions.



Rental LED Panel  Parameters:

Pixel Pitch P2.6 P2.97 P3.91 P4.81
LED Type SMD2121 SMD2121 SMD2121 SMD2121
Module Size 250*250mm
Cabinet Size 500*500mm*80 / 500*1000*80
Module Resolution 96*96 84*84 64*64 52*52
Cabinet Weight 8/14KG
Cabinet Material Die-Casting Aluminum
Gray Scale 16 bit
Contrast Ratio 4000:1
View Angle(H/V) 160°/ 140°
Refresh Rate >1920Hz
Brightness ≥1200nits
IP Rating IP40 / IP21
Servicing Front / Rear
Max Stacking/Hanging 20/10
Operating Temp/Humidity -10℃-60℃ / 10%-60%
Expected Lifetime 100,000Hrs
Average Power Consumption 192/384W/ Panel


Rental LED Panel Features:



Unsurpassed Color Uniformity

Unique color calibration process

Tight bin selection for LED wavelength

Deep black levels, contrast ratio 4000:1





Fast Installation and Easy Maintenance

Truss hanging and ground support both available

Cable-less between modules

Front and rear access

Tools free installation

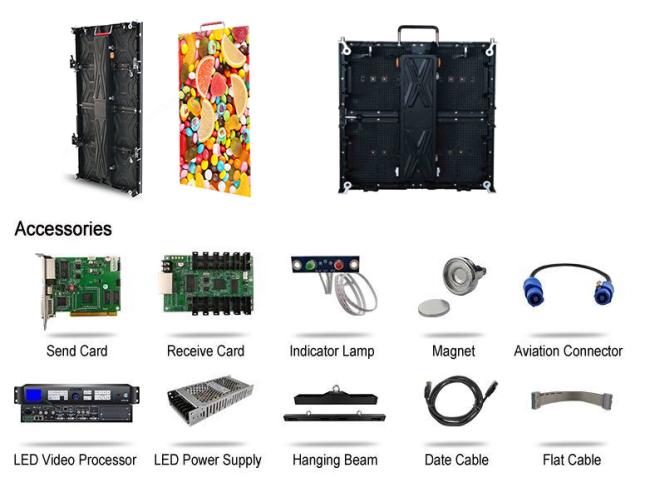

Connection:

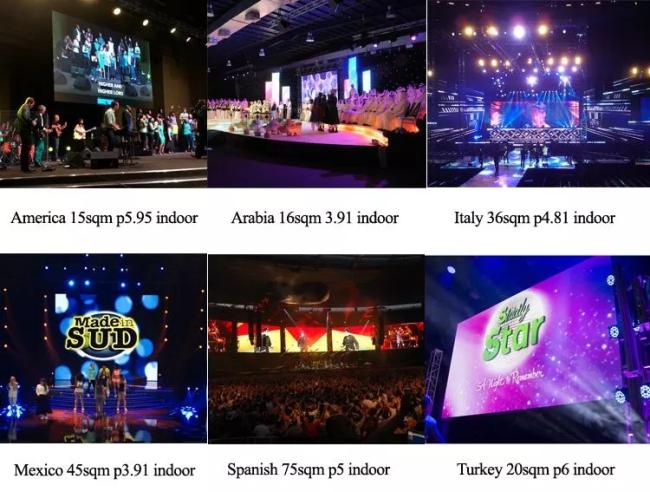

Cases:



Transportation:

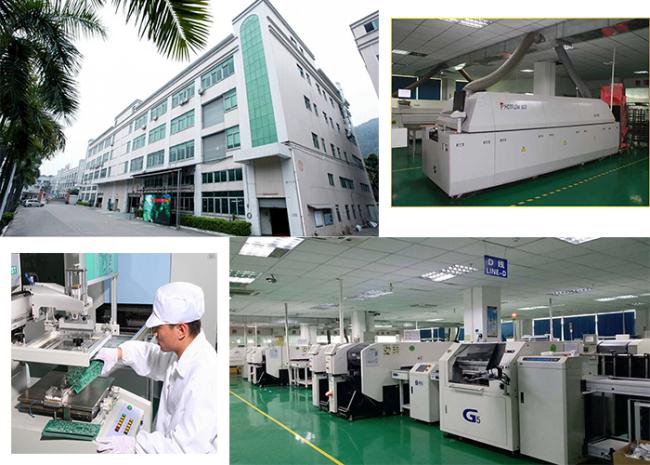

Company Introduction:

LED Vision Technology Limited  , started in Shenzhen in 2005,a world class manufacturer of

technologically advanced LED displays,it is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.





BAKO VISION product lines have include I/O rantal,I/O fixed, UHD fine pitch, transparent screen,advertising poster,foldable screen… meanwhile, based on our experienced R&D team,and comprehensive management , we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.

FAQ:



Q1:How to choose a proper led screen for your need?


A:You just need to think of 3 simple questions when you choose a led screen by yourself.
1.Will you use it indoor or outdoor?
2.Is it for rental use(need to be moved from one place to another place very often) or for fixed installation(to be installed in one place forever)?
3.what is the appoximate size of the led screen you would like to purchase?


Q2:Which pixel pitch should i choose?


A:There are many different pixel pitch from 1.667--20,25,30mm, there is a roughly principle-usually small pixel(1.667mm-10mm) used for indoor led screen, bigger pixel (10mm-30mm) used for outdoor led screen(for example high way huge advertisement).


Q3:Which control system should i choose?


A:There is both synchronous and asynchronous control system for led screen on the market,for big size led screen(usually more than 20sqm) need to use synchronous control system,below 20sqm it's up to you to use syn or asyn.But asyn control system's refresh rate is much lower than sync control system and for asyn control system, you can choose to use wifi,3G,4G etc wireless control.


Q4:How to pay?


A:We accept L/C, T/T bank, or paypal or westerunion.

Q5:How to ship?


A:It is optional and we respect customer's choice. You can choose to ship by air cargo, by internation express company, or by sea according to your goods weight and volume and the delivery time you need.

Q6:How to install it after i received it?


A:We will offer you the drawing to guide you for installation, we could also offer steel drawing, software set up drawing or photo or send our engineer fly to you for help if needed.
