P2.5mm Indoor LED Poster , Digital LED Display Multi Screen Connection For Advertising
P2.5mm Indoor LED Poster, Digital LED Display Multi Screen Connection For Advertising
Products Feature
1.Ultra slim and light-weight body, easy to lift up
28kg per set, the tickness of Our this series poster screen only 35mm. While others 45mm.
8mm Gap between Displays, orthers 10mm.

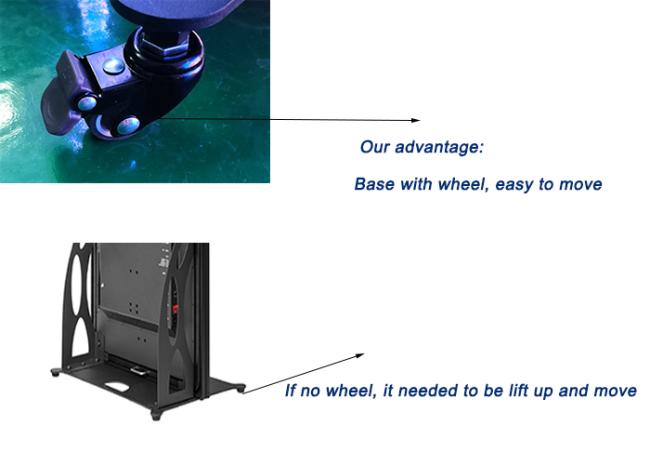

Adding Wheel for easily moving
2. HD visual experience
1.9 mm and 2.5 mm pixel pitch, high refresh rate (2880Hz) and brightness (1000 nits) provide users with perfect display effect.
3. Aluminum Shell of Module
Not easy to be deformed,Good Heat Dissaption,High precision
4.New Design --- Small holes on the back of panel
You can use screwdriver to take out the screws through these holes,then you can replace modules easily. No need to disassemble the whole back cover.
Specifications
| BP-1 | BP-2 | |
| Physical Pitch | 1.9 mm | 2.5mm |
| Pixel Configuration | SMD1010 | SMD2020 |
| Pixel Density | 276,676 pixels/m² | 160,000pixels/m² |
| Module Dimensions(W*H)(mm) | 280*210 | 280*210 |
| Panel Dimensions(mm) | 572*1920*35 | 572*1920*35 |
| NO. of Modules Per Panel (W*H) | 2*9 | 2*9 |
| Panel Material | Aluminum | Aluminum |
| Colors | 281 trillion | 281 trillion |
| Sigle Cabinet Weight | 32kg | 32kg |
| Processing | 16 bit | 16 bit |
| Refresh Rate | >=2800 Hz | >=2800 Hz |
| IP Rating | IP40 | IP40 |
| Viewing Angle | 160°/140° | 160°/140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Operating Temp/Humidity | -10ºC-60ºC/10%-60% | -10ºC-60ºC/10%-60% |
| Storage Temp/Humidity | -30ºC-60ºC/10%-60% | -30ºC-60ºC/10%-60% |
| Physical Resolution of Module(W*H)(mm) | 147*110 | 112*84 |
| Physical Resolution of Whole Set(W*H)(mm) | 301*1010 | 228*768 |
| Avg/ Max Power Consumption | 250/750W/Set | 250/750W/Set |
| Servicing | Front | Front |
| Driving Method | 1/28 Dynamic Scan | 1/28 Dynamic Scan |
| Frame Rate | 60 fps | 60 fps |
Products details

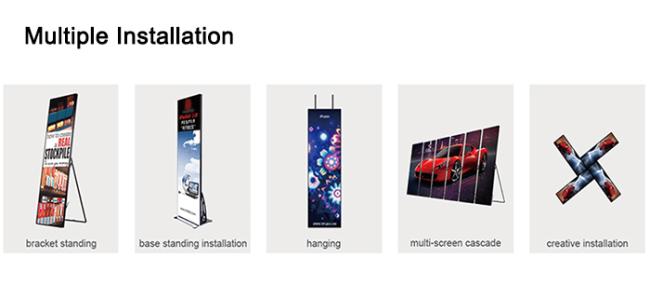

Variable Installation Ways and application
1. Wall Mounted
2.Hanging
3. Bracket Standing

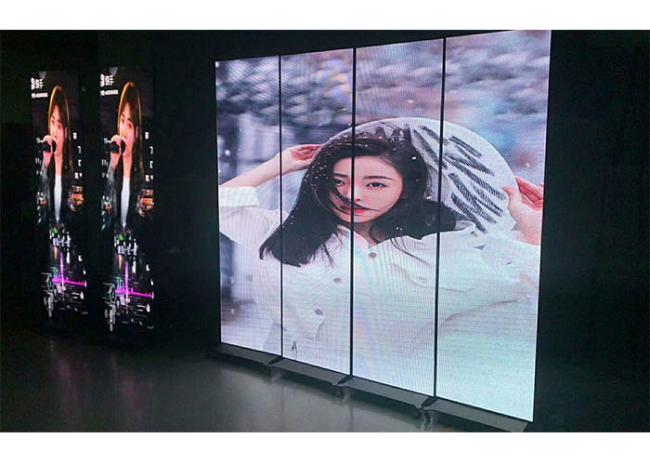

4.Ground Standing / Multi-Screen Cascade

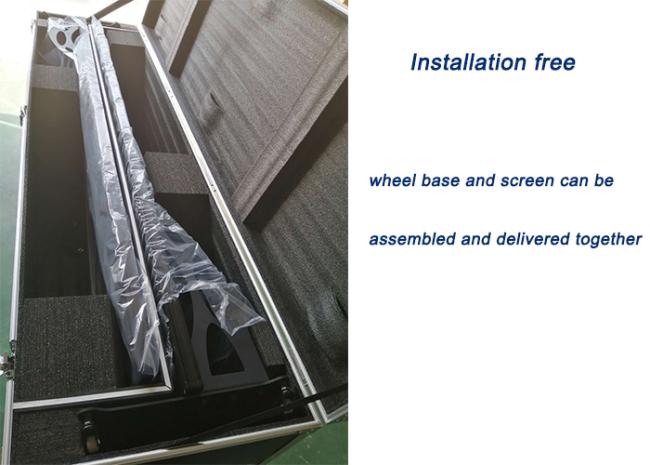

Packing
Flight case or Carry bag
Two pieces in one Flight case, Bottem shell have installed, save labor cost.
Carry bag easy to take.
About us
LED Vision Technology Limited , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
Our avantages:
- The unit price depends on the quantity, we can offer you at a competitive price.
- Your inquiry related to our products or prices will be replied in 24hours.
- Well-trained and experienced staffs to answer all your enquiry regarding products.
- Distributorship are offered for your unique design and some our current models.
- Protection of your sales area, ideas of design and all your private information.
Tips
* Package: Wooden package, Flight case.
* Shipment:By road,sea and air
* Delivery time:20-25 working days
* Payment: T/T, 30% deposits, 70% balance before delivery
* Shipping port: Shenzhen,China
* Warranty time: 2 years
