Ultra Thin Led Electronic Display Screen P1.6/ P2.5mm HD Front Rear Service
P1.6/ P2.5mm Ultra Thin High Definition Indoor LED Display Front and Rear Service
Indoor Full Color HD Fixed LED Display Panel
P1.5, P1.6, P1.8, P2.5, P3 mm indoor is smallest pixel pitch. In general, we would use best IC with 2880Hz refresh rate because small pixel Led display module has higher request in quality and image effect. In addition, better SMT process and quality control are needed because every module have too many Led lamps and they are very expensive. We have enough good technology to produce best small pixel Led display modules.
Features
1. Small pixel pitch series, ultra high definition LED display, the high resolution brings delicate display effect.
2. Light weight, 7kg/panel, good flatness and Easy Maintenance.
3. 480*480mm cabinet with fast locks and handles to ensure fast installation and disassemble.
4. Seamless connection to ensure showing nice pictures, videos.
5.Perfect for indoor rental and fixed application, ultra light and thin, dual handles and quick lock desing, easy on-site installation.
Parameter
| BHD-1.667 | BHD-2.5 | |
| Physical Pitch | 1.667mm | 2.5mm |
| Pixel Configuration | SMD1010 | SMD2121 |
| Pixel Density | 360,000 pixels/m² | 160,000 pixels/m² |
| Module Dimensions(W*H)(mm) | 240 × 240 | 240 × 240 |

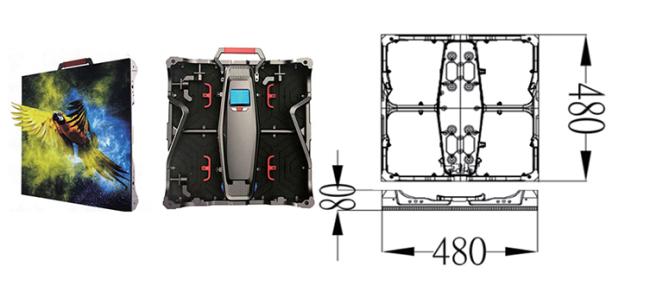

| Panel Dimensions(mm) | 480 × 480 × 80 | 480 × 480 × 80 |
| NO. of Modules Per Panel (W*H) | 2*2 | 2*2 |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum |
| Colors | 281Trillion | 281Trillion |
| Processing | 16 Bit | 16 Bit |
| Physical Resolution of Module(W*H)(mm) | 144*144 | 96*96 |
| Physical Resolution of Panel(W*H)(mm) | 288*288 | 192*192 |
| Single Cabinet Weight | 7kg/panel | 7kg/panel |
| Average Power Consumption | 264 W/panel | 215 W/panel |
| Max Power Consumption | 680 W/panel | 640 W/panel |
| Brightness | 600-1000 nits | 600-1000 nits |
| Viewing Angle | H:160°/ V:140° | H:160°/ V:140° |
| Operating Temp/ Humidity | -10ºC-60ºC/10%-60% | -10ºC-60ºC/10%-60% |
| Storage Temp/ Humidity | -30ºC-60ºC/10%-60% | -30ºC-60ºC/10%-60% |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear |
| IP Rating(Front/Rear) | IP 40/IP21 | IP 40/IP21 |
| Max Stacking and Hanging | 20/10 | 20/10 |
| Refresh Rate | >2,880 Hz | >2,880 Hz |
| Scan Method | 1/32 Scan | 1/32 scan |
Pruduct details

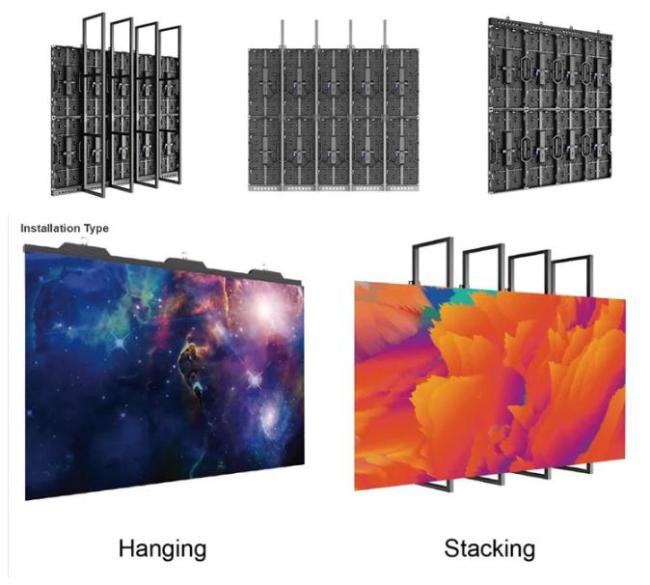

Freely Installation ( Hanging and stacking available.)
It can meet the differrnt demands of mobeable occasions with hanging bar or back brackets.
Could hanging with hanging beam, also standing install with support frame. Installation and dismantle with in few second each cabinet, save your time and labor.
3. Lightweight to ensure convenient carry and transportation
4. High brightness and high refresh rate to ensure clear and nice pictures.
5. Wide Viewing angle to cover larger view range and attract more attention viewers.

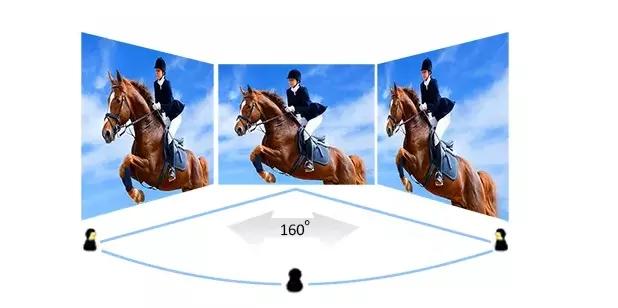

Wide viewing angel
High quality SMD1010 black body lamps provide 160°/140° (horizontal / vertical) viewing angel make sure you can watch it in any directions.

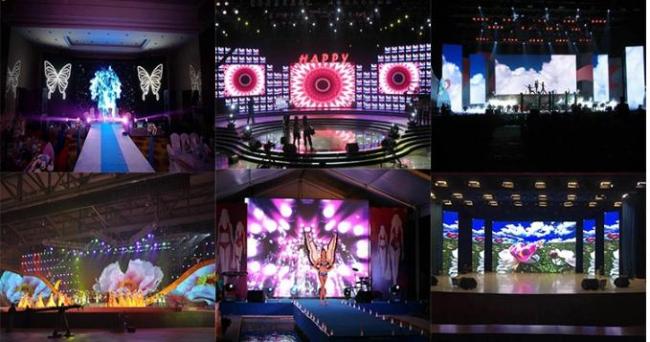

Application
P1.579, P3mm LED Modules are applied Widely in Stadiums, Advertisement, Banks, Securities exchange, Stations,Shoping malls Postal officees, Schools, Monitoring, Restaurants, Entertainment, Enterprises etc.
Packing/ Shipping -Flight case/ By sea or by air
