P5 Outdoor Fixed Led Display Billboard Front Access Curved Design IP65 Waterproof
P5 Outdoor Fixed Led Display Billboard Front Access Curved Design IP65 Waterproof
Outdoor fixed led display
With the continuous development and maturity of small-pitch technology, indoor and outdoor fixed display screen products begin to be small-pitch, with clearer resolution, higher refresh rate and higher color reduction, which can meet more high-end display needs.
Outdoor fixed led Main Features:
1. Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light.
2.Safty Lock. Upgrated double safty lock design, double hanging lock and stable side lock.
3.The cabinet of unit moules asopts to high-temperature spraying technology, the antirust function is greatly improved.
4.High reliability

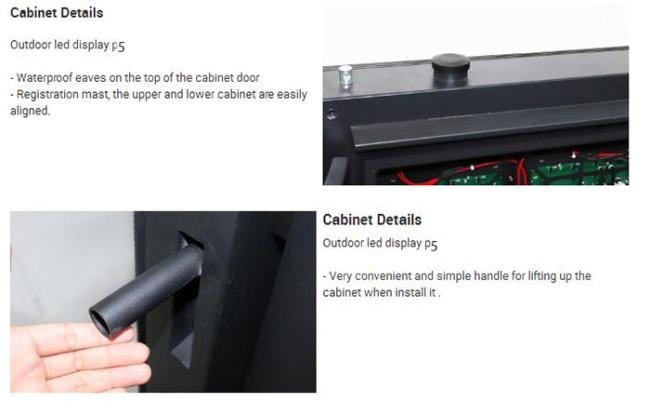

5.Cabinet Details
- Waterproof support of fans
6. Field of application
Fixed installation outdoor led display p5 billboard digital led advertising screen is used in monitoring centers, dispatch centers, command centers, radio and television stations, auditoriums, electric classrooms, conference rooms, stadiums, shopping malls, hotels, supermarkets, and specialty stores.
Outdoor fixed led Specifications, the catalogue can be download⇒
| BOF-5 | |
| Physical Pitch | 5.95 mm |
| Pixel Configuration | SMD 2727 |
| Pixel Density | 28,246 pixels/m² |
| Module Dimensions(W*H)(mm) | 250*250 |
| Panel Dimensions(mm) | 500*1000*150 |
| NO. of Modules Per Panel (W*H) | 2*4 |
| Physical Resolution of Module (W*H) | 52*52 |
| Physical Resolution of Panel (W*H) | 84*168 |
| Panel Material | Steel/ Aluminum |
| Colors | 281 trillion |
| Brightness | >6,500 nits |
| Weight (kg/m²) | 65/45 |
| Processing | 16 bit |
| Refresh Rate | >1920 Hz |
| IP Rating | IP65/ IP54 |
| Viewing Angle | V:160 degree H: 140 degree |
| Expected Lifetime | 100,000 Hrs |
| Operating Temp/Humidity | -20ºC-50ºC/ 10%-90% |
| Storage Temp/Humidity | -20ºC-50ºC/ 10%-90% |
| Avg./ Max. Power Consumption | 360/900W/ panel |
| Servicing | Front/Rear |
| Scan Method | 1/7 Scan |
Outdoor fixed led Procesure Details

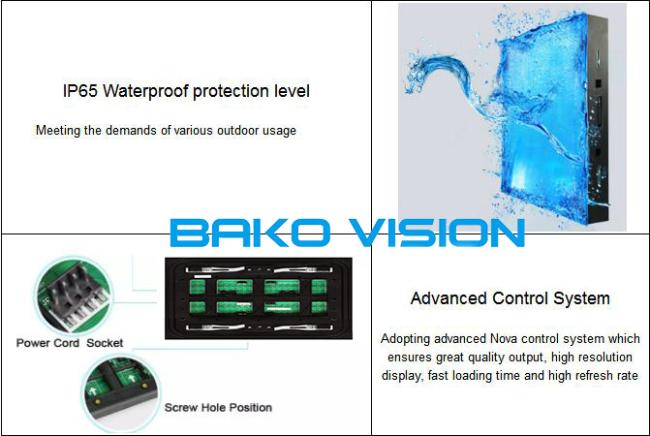

IP65 Waiterproof, you can click the photo as follow and then you will get the video. ↓↓↓↓↓↓↓↓

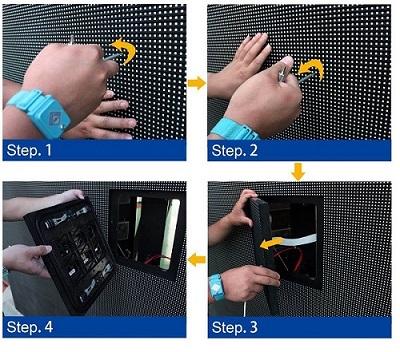

Fast Installation and Easy Maintenance
Fast lock system design guarantees a quick and easy installation
Mechanical front access
Application Case

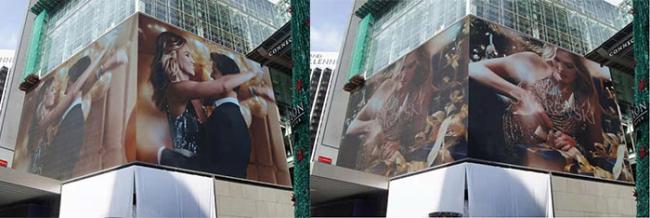

The Outdoor fixed LED screen in Malaysia with 1500 aquare meters.
The shopping mall with total construction area of 360,000 square meters, it not only the largest shopping park in Malaysia, but also has a Guinness World Recorded largest LED screen. It added lots of passion to this hot city.

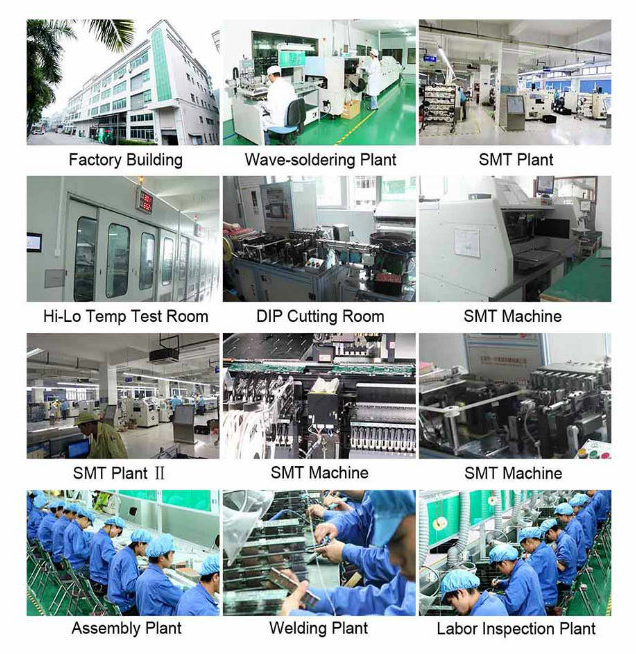

Our company
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
Our avantages:
- The unit price depends on the quantity, we can offer you at a competitive price.
- Your inquiry related to our products or prices will be replied in 24hours.
- Well-trained and experienced staffs to answer all your enquiry regarding products.
- Distributorship are offered for your unique design and some our current models.
- Protection of your sales area, ideas of design and all your private information.
