P6.67 Outdoor Fixed Led Display Back Access Service Screen For Advertising
Outdoor Fixed LED Display P6.67 P10 Full Color Front Service LED Display Screen for Advertising
Feature:
1. High difinition, wonderful visual performance;
2. Multifunctional Module Buckle
Special multifuntional module buckle designed for adjusting gaps between module and cabinet to ensure the smoothness and alignment
3. Outdoor Rated
IP65
Brightness adjustable for day and night
Durable LED for 7/24 work mode
4. Fast Installation and Easy Maintenance
Fast lock system guarantees a quick and easy installation

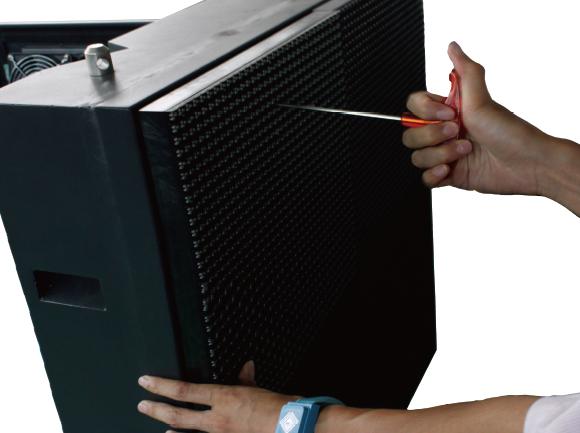

Mechanica Front Access
5. Energy-Saving Technology
Cutting edge'cold display' technology
60% power lower than nomal
50% temperature less than normal
6.The products based on CE, FCC, RoHS Certification;
7. High Gray Scale
8. Different Installation
Specification
| Model | BOF-6 |
| Pixel Pitch | 6.67mm |
| Pixel Density | 22376pixels/m2 |
| LED Type | SMD3535 |
| LED Configuration | 1R1G1B |
| Cabinet Dimension | 960mm*960mm |
| Cabinet Resolution | 144*144pixels |
| Cabinet Weight | 65kg/Steel |
| Cabinet Material | Steel/Aluminum |
| Ingress Protection (front/rear) |
IP65/IP54 |
| Brightness | >6500nits |
| Viewing Angle(H/V) | 140°/140° |
| Driving Method | 1/6 scan |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | >1500Hz |
| Gray Scale | 16bit |
| Power Consumption(avg. ) | 300W/m2 |
| Input Voltage | AC 110/220±10% 50~60Hz |
| Temperature (operating/storage) |
-20~50°C / -40~60°C |
| Humidity(operating/storage) | 10%~90%RH / 10%~85%RH |
| MTBF | ≥1000hrs |
| Life Span | ≥100000hrs |
| Pixel Failure | <0.0003 |
We strictly follows ISO9001: 2008 quality management system and passed CE, FCC, UL, RoHS, CCC etc. All of these factors ensure high quality LED products and effective services.
We keep the company culture ``Professional, Concentration, Focus`` aimed at LED. With the development of LED technology and the perfervid competition in the LED field.
Advantage:
Our company also can arrange our engineers to provide you professional installation guide and training for free via remote control, video and phone.
All of products will be tested many times and 100% promise the products are well before shipping.
The products can be customized according to your projects and offer you the CAD drawing for free.
We guarantee all of our displays, modules, spare parts for full two years. During the time, we will replace or fix our goods for free if there is something wrong with them.
