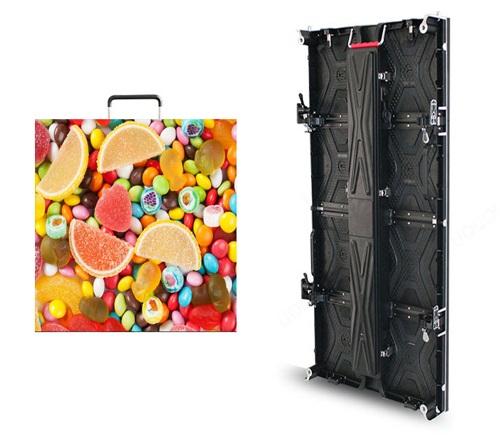

500*500mm SMD2525 P3.91 IP65 Stage Rental LED Screen
SMD LED Rental Display High Resolution 7kg Light Weight Panel 1200Nits Indoor
P4.81 Die-casting aluminum cabinet indoor rental led monitor display
Detachable Power & Control Backside
LED Cabinet’s backside power & receiving card control box can fast changed for easy maintenance.
Climb ladder Lock design
Each cabinet backside has handles can be climbed like a ladder. The handle can be used to lock the up and down cabinet.
Front & Rear Maintenance
It makes you easy to remove the modules without any tools and maintain the screen in front side as well as the rear side.
Indoor LED Display Parameters:
| Module | |
| Pixel Pitch | 4.81mm |
| Pixel Density | 43,264 pixel/sqm |
| Pixel Quantity (W * H) | 52* 52/52* 104mm |
| Module Size | 250 * 250/250 * 500mm |
| LED Type | SMD2525 |
| LED Configuration | 1R1G1B |
| Cabinet | |
| Resolution (W * H) | 104* 104/104* 208mm |
| Dimension(mm)(W * H) | 500*500/500*1000mm |
| Cabinet Material | Die-Casting |
| Cabinet Weight | 9/15kg/Panel |
| IP Rating(Front/Rear) | IP65/IP54 |
| Screen | |
| Brightness | >6,000nits |
| Input Voltage | AC 110/220±10% 50~60Hz |
| Gray Scale | 16bits |
| Refresh Rate | >1,920Hz |
| Dot Defects Rate | <0.0001 |
| Viewing Angle (H/V) | 160°/140° |
| Life Span | ≥100000hrs |
| Power Consumption(avg.) | 75/150W/Panel |
| Operating Temp/Humidity | ﹣20d℃～60℃ / 10%～60%RH |
| Storage Temp/Humidity |
﹣30℃～60℃ / 10%～60%RH |
LED Vision Technology Limited , started in Shenzhen in 2005,a world class manufacturer of
technologically advanced LED displays,it is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION product lines have include I/O rantal,I/O fixed, UHD fine pitch, transparent screen,advertising poster,foldable screen… meanwhile, based on our experienced R&D team,and comprehensive management , we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
FAQ
Q1:How to choose a proper led screen for your need?
A:You just need to think of 3 simple questions when you choose a led screen by yourself.
1.Will you use it indoor or outdoor?
2.Is it for rental use(need to be moved from one place to another place very often) or for fixed installation(to be installed in one place forever)?
3.what is the appoximate size of the led screen you would like to purchase?
Q2:Which pixel pitch should i choose?
A:There are many different pixel pitch from 1.667--20,25,30mm, there is a roughly principle-usually small pixel(1.667mm-10mm) used for indoor led screen, bigger pixel (10mm-30mm) used for outdoor led screen(for example high way huge advertisement).
Q3:Which control system should i choose?
A:There is both synchronous and asynchronous control system for led screen on the market,for big size led screen(usually more than 20sqm) need to use synchronous control system,below 20sqm it's up to you to use syn or asyn.But asyn control system's refresh rate is much lower than sync control system and for asyn control system, you can choose to use wifi,3G,4G etc wireless control.
